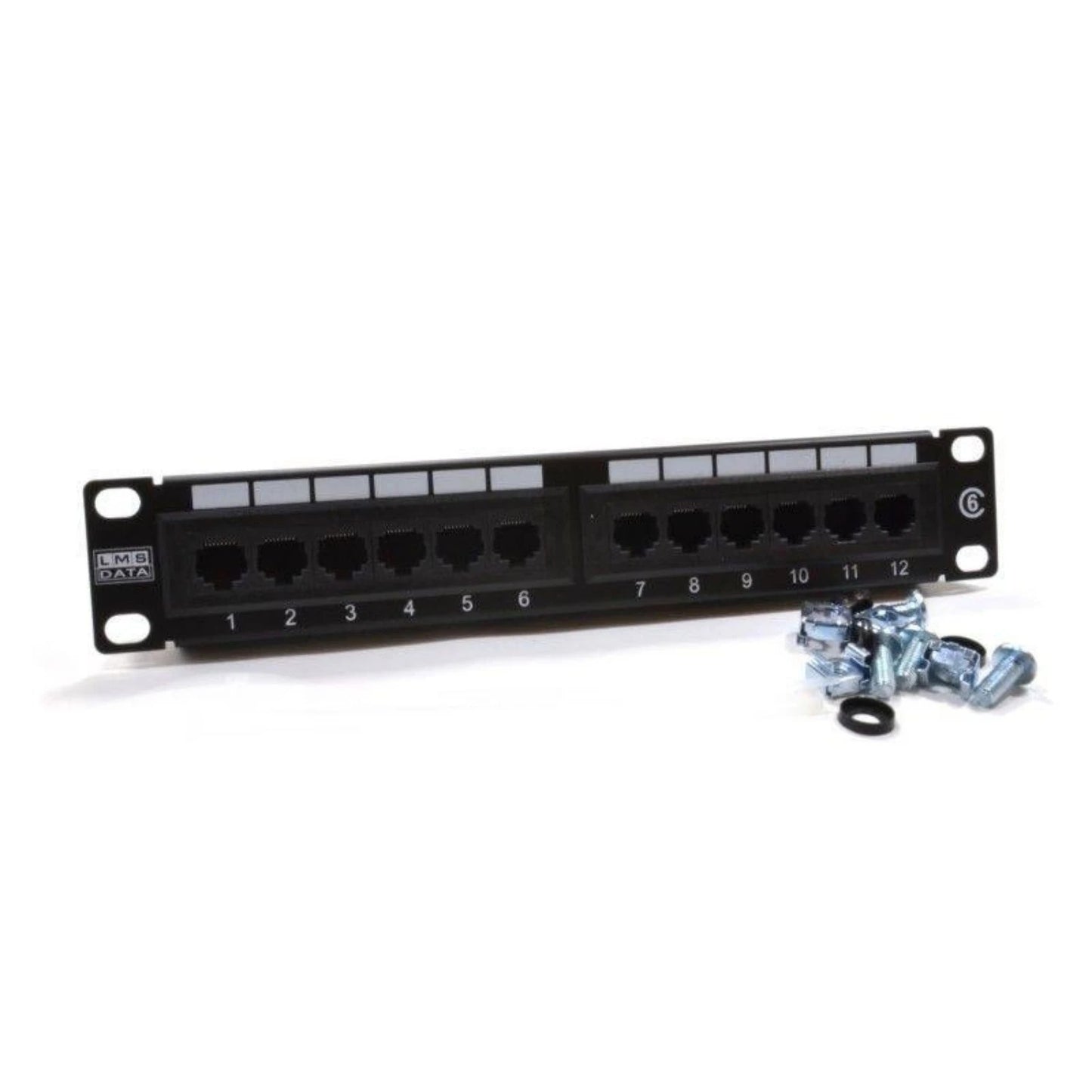

12 Port 1U 10-inch Cat6 UTP SOHO UTP Patch Panel/PPAN-12-10-C6

Regular price £16.08 GBP
Regular price Sale price £16.08 GBP
Sale Sold out
Tax included.

The LMS Data PPAN-12-10-C6 is a 12-Port certified CAT6 UTP Patch Panel which is
designed as a SOHO (small office home office) 10-inch design. Being compact it is designed to fit in a range of 10-inch data cabinets found in homes and small offices.

Fully Gigabit Ethernet certified means it's ideal for running legacy and advanced networking protocols to Gigabit Switches up to 1000Mbps. Also ideal for telecom, VoIP, CCTV-IP, and other Ethernet-based standards.

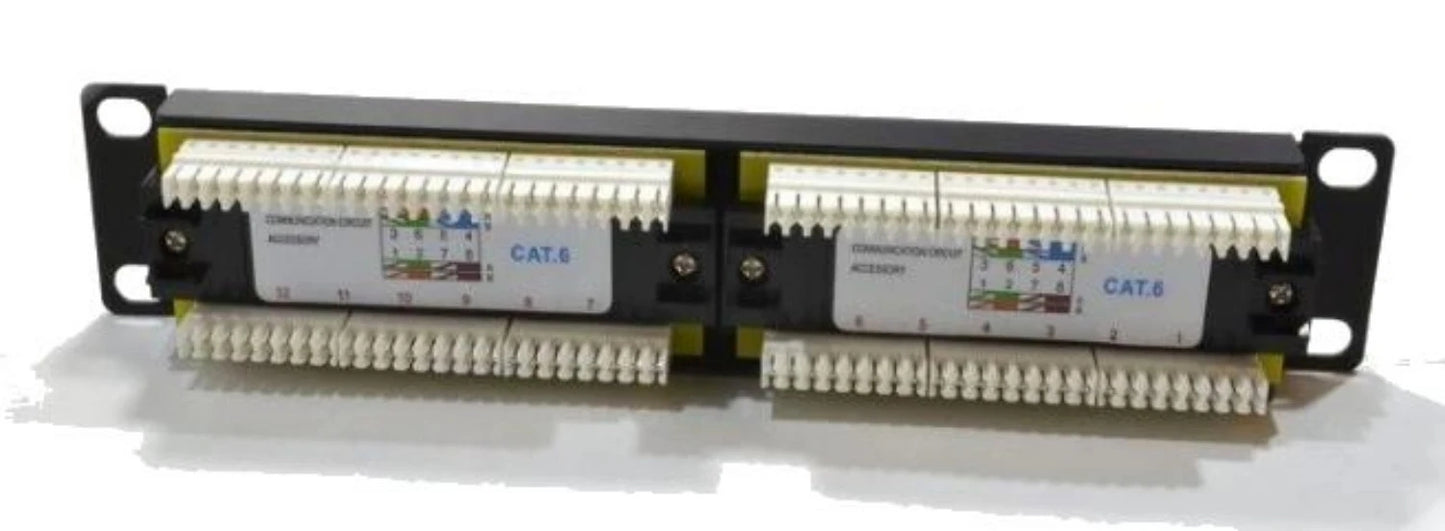

Long-life, nickel-plated female RJ45s, robust construction with color-coded rear Krone(tm) KATT type IDC for both TIA-568A/B terminations.



  • Certified CAT6 Performance for Gigabit Ethernet
  • 10-inch SOHO Compact Design for 10-inch Cabinets
  • Popular Krone(tm) KATT Dual Purpose IDC Punchdown
  • Removable Rear Cable Management Bar for Cable Anchoring


Technical Specifications

  • Port Count 12 Ports UTP
  • Dimensions 1U 19-Inch Design Format
  • Conformance TIA-EIA-568A/568-B2.1 Coded IDC
  • Performance 10/100/1000Mbps Gigabit Compliance
  • RJ45/IDC Connects Nickel and Phosphor Bronze
  • Port Identification Numbered and Bespoke ID Marker
  • Fixings Supplied M6 Nuts and Bolts
  • 12-Port, 10-inch wide category 6 patch panel
  • Compact and robust 1U form-factor design
  • Exceeds current category 6 performance
  • TIA-EIA-568A/B2.1with Krone AT&T (KATT) IDC
  • Phosphor bronze and Nickel IDC connectors
  • Gold over Nickel IDC connectors RJ45 connectors
  • Supports 22 to 26 AWG conductor diameters
  • Ideal for 10-inch Enclosures, SoHo Cabinets


Package Includes

  • 1     x     12 Port 1U 10-inch CAT6 UTP SOHO UTP Patch Panel
