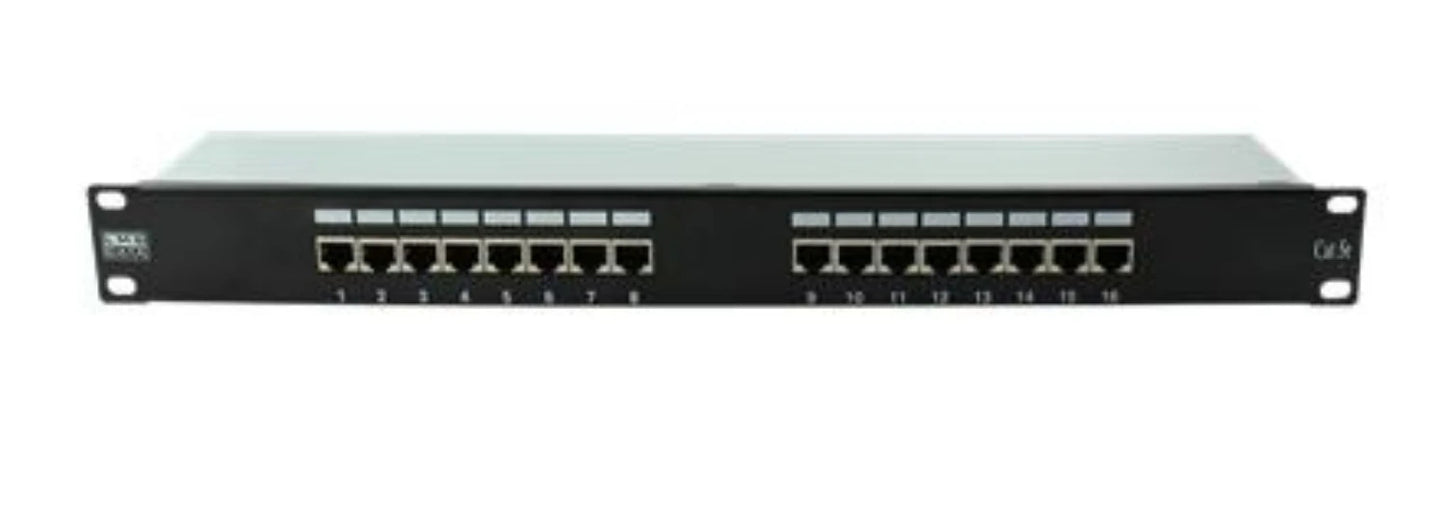

16-Port 1U Vertical Rackmount CAT5e STP Patch Panel Plus Back Bar/PPAN-16-SHD

Regular price £34.47 GBP
Regular price Sale price £34.47 GBP
Sale Sold out
Tax included.

The LMS Data PPAN-16-SHD is a 16-Port certified CAT5e STP Patch Panel which is ideal for structured cabling installations in offices of all sizes. Slimline, 1U height means it's ideal for small wall cabinets as well as regular, floor-standing cabinets and racks. Using a horizontal IDC rear punch-down means it's easy to terminate cables by simply pulling the patch panel from the front of the cabinet it is installed in.

Fully Gigabit Ethernet certified means it's ideal for running legacy and advanced networking protocols to Gigabit Switches up to 1000Mbps. Also ideal for telecom, VoIP, CCTV-IP, and other Ethernet-based standards. Long-life, nickel-plated female RJ45s, robust construction with color-coded rear Krone(tm) KATT type IDC for both TIA-568A/B terminations. The Patch Panel is fully enclosed in an alloy chassis to help mitigate RF issues.



  • Fully shielded (STP) Cat5e Patch Panel for assured clean data
  • Class-leading Cat5e/ISO-11801 compliant
  • Supports Gigabit (1000BaseTX) and other networking speeds
  • TIA-EIA-568A or B punch down IDC blocks (vertical punch)
  • 1U high, fully enclosed metal chassis for security and RF protection

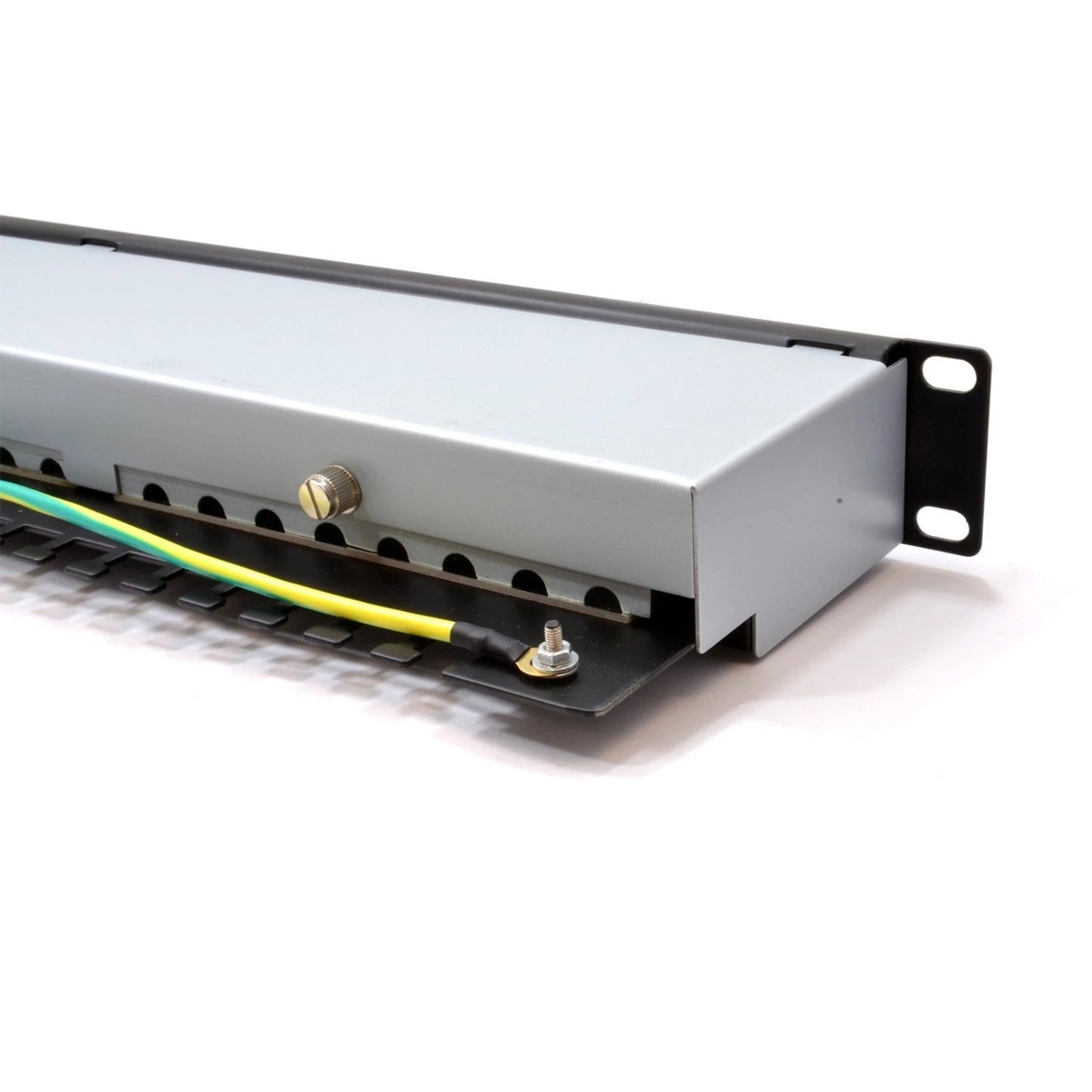

  • Rear built-in cable management tabs
  • Ideal for Wall Enclosures and restrictive usage
  • Office, Education, and Home Structured Cabling Installs
  • Used in installations of high RF Noise environments
  • Ideal for Gigabit Ethernet (1000Mbps) Data Networks
  • Create fault-tolerant LANs by simply patching ports


Technical Specifications

  • Port Count 16 Ports STP
  • Dimensions 1U 19-Inch Design Format
  • Conformance TIA-EIA-568A/568-B Coded IDC
  • Performance 10/100/1000Mbps Gigabit Compliance
  • RJ45/IDC Connects Nickel and Phosphor Bronze
  • Port Identification Numbered and Bespoke ID Marker
  • Fixings Supplied M6 Nuts and Bolts


Package Includes

  • 1     x      16 Port 1U Vertical Rackmount CAT5e STP Patch Panel Plus Back Bar
