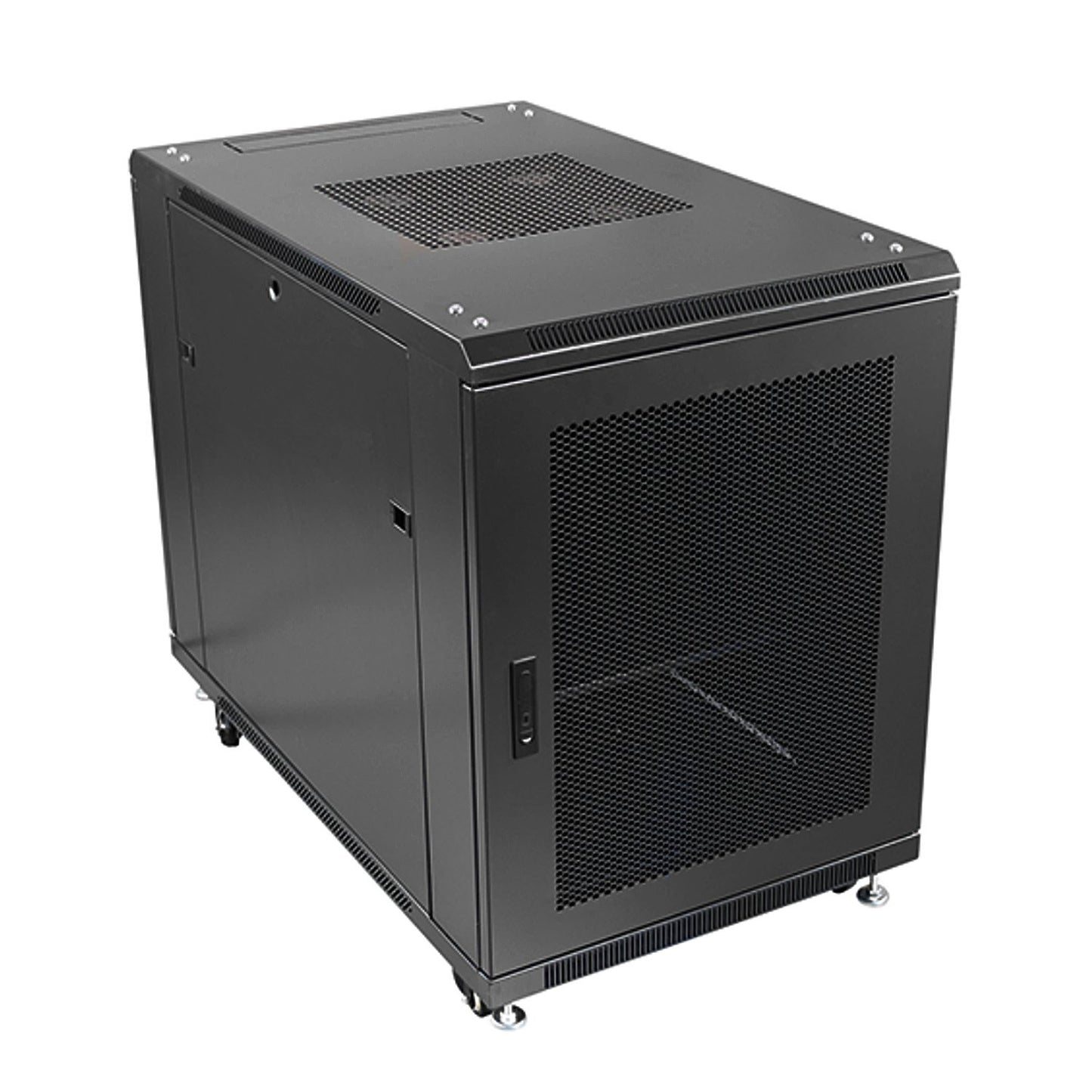

19" 12U Enclosure 600 X 1000 Floor Standing Server Rack/CAB-FE-12U-6100

Regular price £401.84 GBP
Regular price Sale price £401.84 GBP
Sale Sold out
Tax included.

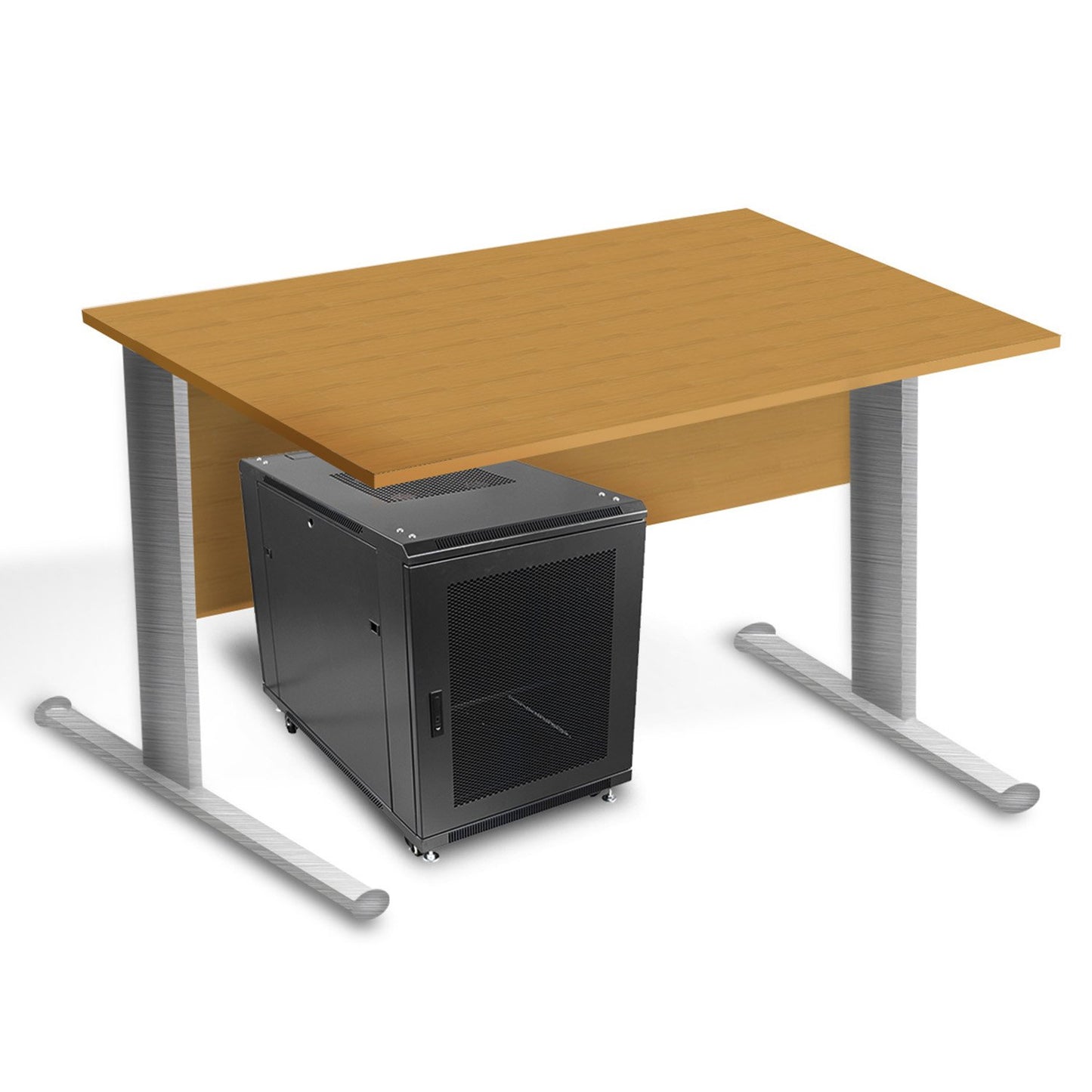

The CAB-FE-12U-6100 is a small enclosure 12U Server Rack Cabinet, built for the housing of standard size 19” inch devices, the enclosure is 600mm in width and 1000mm deep and compatible to house regular Servers, SAN, UPS, and other networking devices. The cabinet is designed to fit in smaller places than the regular server enclosures and is able to store under a desk or staircase. Designed through air ventilation, and built in accordance with industrial standards, more fans or temperature modules can be added.

The CAB-FE-12U-6100 is a compact server enclosure/ 12U Server Rack Cabinet which can fit under a desk or in a corner, while still having all the features needed to store a high-end server with accessories needed which would be expected by IT integrators. The cabinet includes through-air ventilation which can be expanded according to requirements, 19-inch wide profiles together with front and rear adjustable profiles, and thick gauges to carry the extra weight of a fully populated server, UPS, or another electronic networking device.


  • Complementing the design is the industry standard, 1000mm depth to facilitate almost all servers with the extra benefit of increased airflow.
  • Airflow is further enhanced with the integral front meshed door to allow ambient air to circulate correctly and thus reduce server downtime.
  • As with LMS Data enclosures, a fitted roof fan tray provides effective removal of warm air from the enclosure and thus the LMS Data compact server enclosures are your ideal choice for mission-critical applications - big or small.
  • Ideal Server Rack for Rackmountable Switches, Blade Switches, NAS, and UPS Systems
  • 1000mm deep is ideal for Servers, and SNMP Switches with deeper design criteria
  • Universal 19" design supports leading Server vendors including IBM, Dell, HP, Sun, and Apple

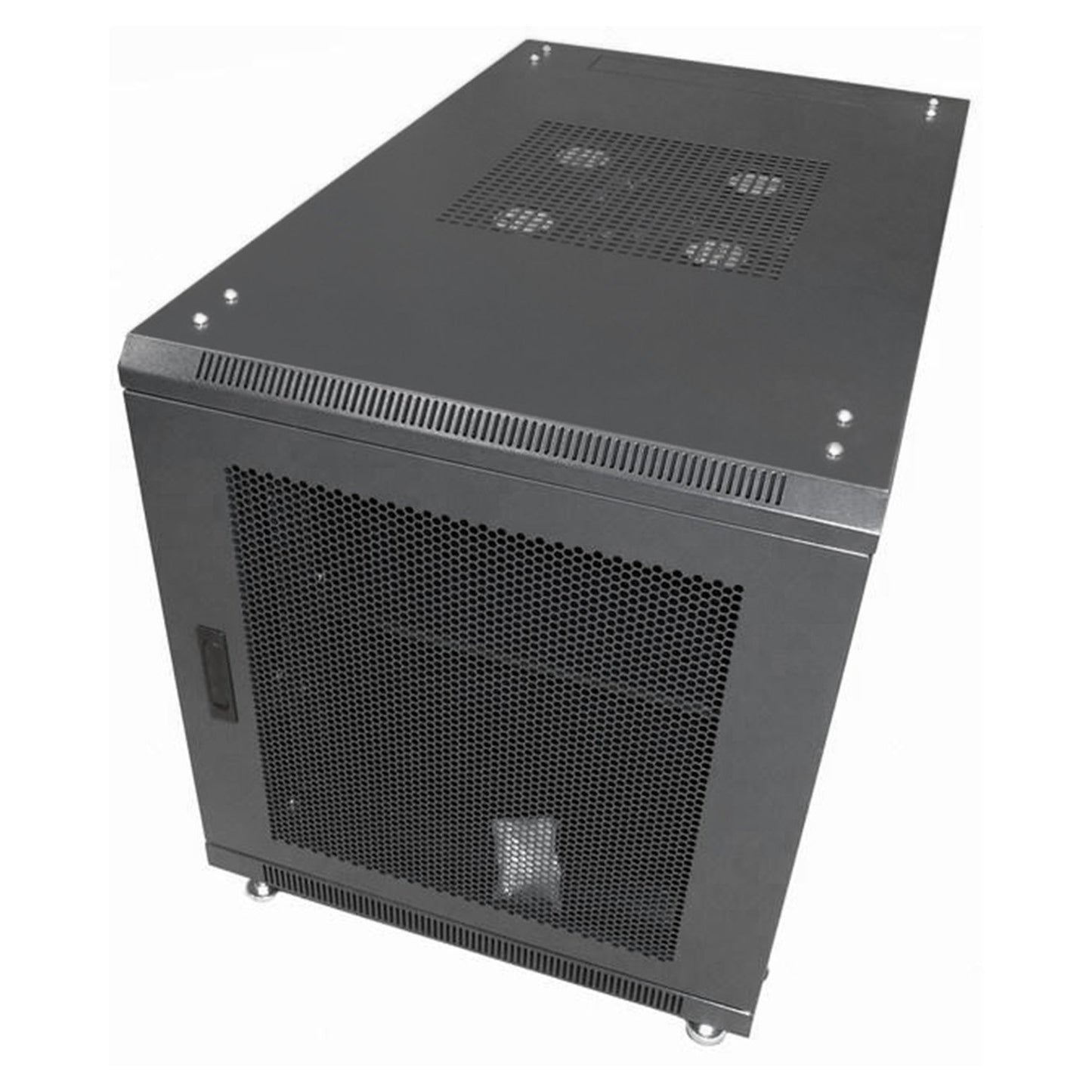

  • Superior ventilation with the inclusion of a fitted roof-mounted Fan Tray cluster, mesh door
  • Superior dynamic and static load performance for heavier equipment loads
  • Useful design features including front U numbering, multiple cable entry points, and left/right door placement
  • Secured with front and side panels with special, high-quality locks with mesh door



  • Color: Black, Powder-coated RAL 9005 finish
  • Front Door Construction: Steel Mesh
  • Front Door Key Lock: Yes
  • Front Door Reversible and/or Removable: Removable and Reversible
  • Enclosure Type: Steel

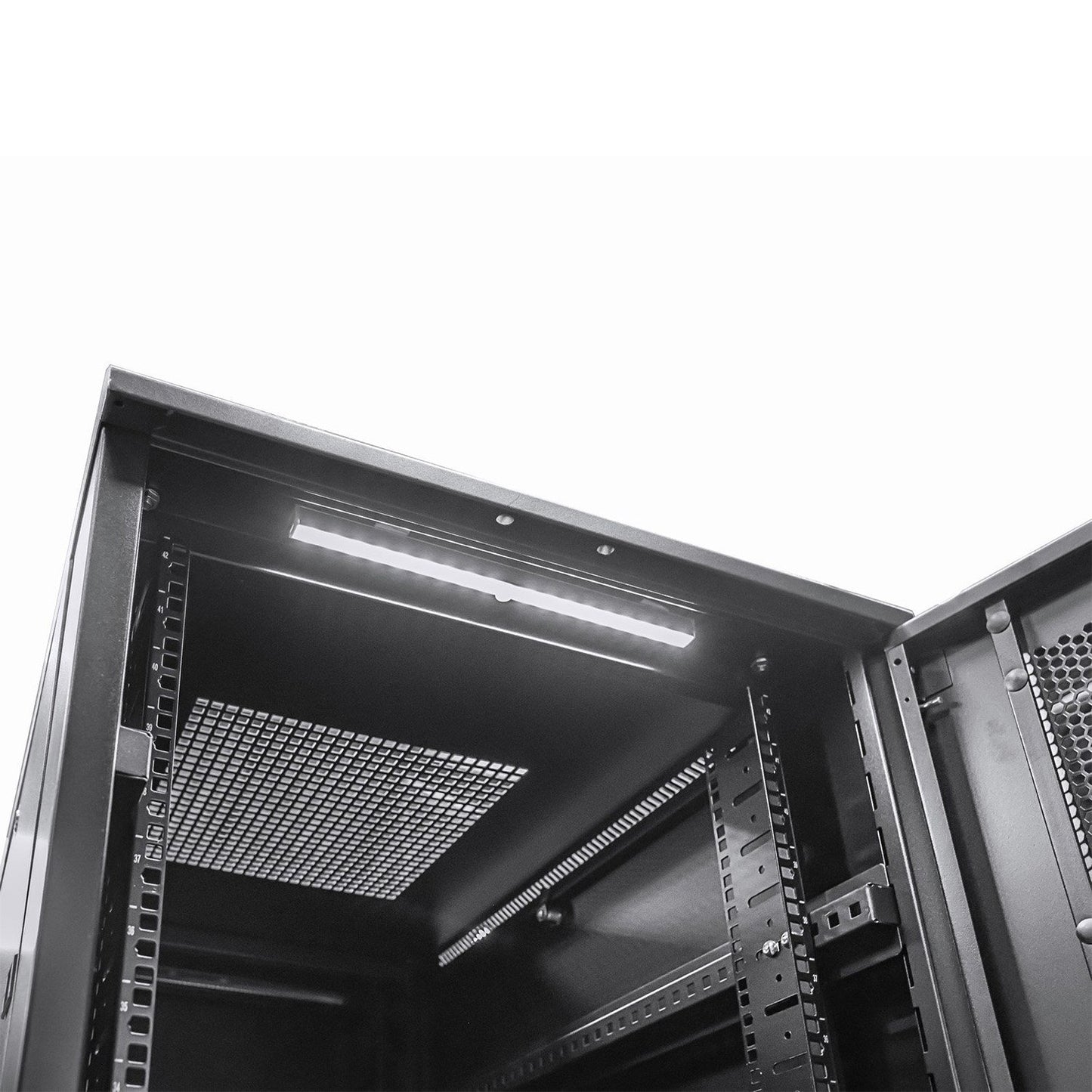

  • ETSI 19” front/rear profiles (adjustable)
  • Universal server design for all popular servers, UPS, SAN & more*
  • Up to 800Kg static load bearing
  • Front mesh high venting door (lockable)
  • Left/right hinged front/rear doors
  • Removable side panels for easy access
  • U-numbered uprights for rack-mount product alignment
  • Multiple cable entry glands for exact power and cabling entry
  • Fitted 4-way fan tray in raised and vented roof space

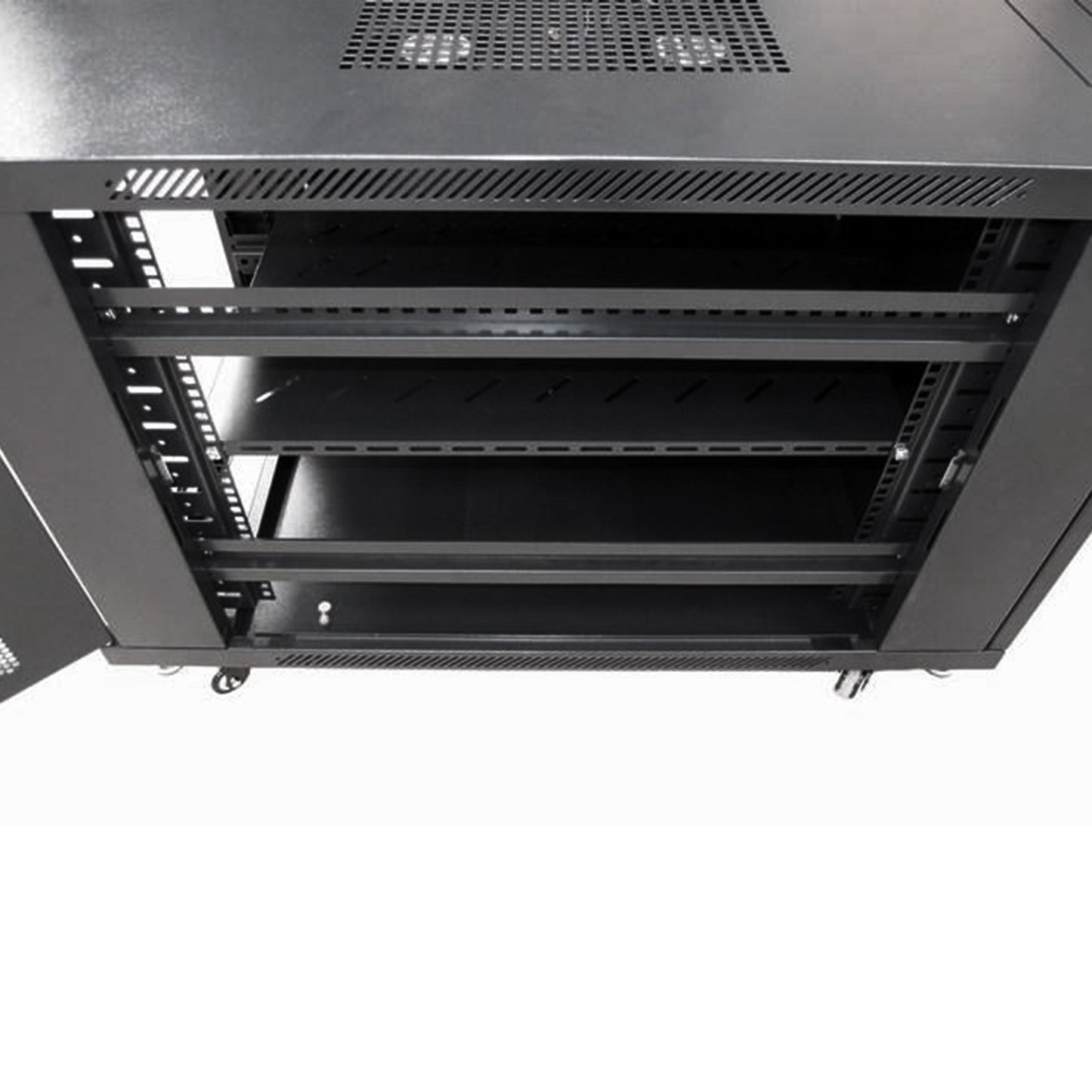

  • Fitted vented shelf


Package Includes

  • 1    x     19" 12U Enclosure 600 X 1000 Floor Standing Server Rack
