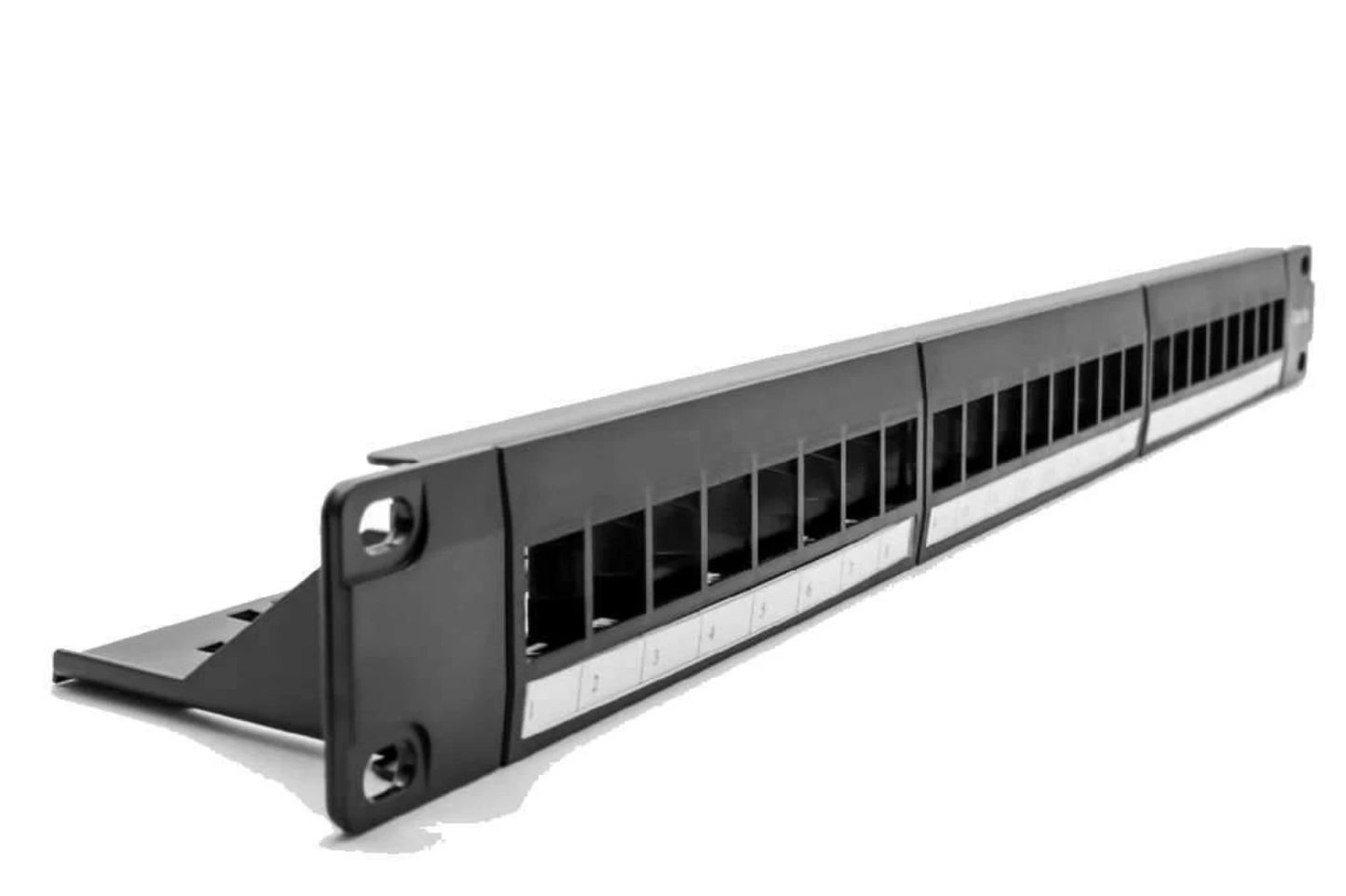

24-Port 1U Rackmount CAT5E UTP Modular Patch Panel/PPAN-24-THRU

Regular price £49.50 GBP
Regular price Sale price £49.50 GBP
Sale Sold out
Tax included.

Built-in ease of maintenance.

Offering ease of maintenance and instant connectivity for both End Users and installers alike, the new LMS Data PPAN-24-THRU is your ideal solution for running the latest Networking, Voice, and Telco applications. Fully modular in design, the Patch Panel allows each RJ45 module to be replaced if necessary, say for example, running mixed media of both UTP and STP modules within the same 19” Patch Panel. Ideal for Fast Ethernet and Gigabit (1000BaseT) applications, the PPAN-24-THRU allows instant connectivity to any size of Network. Using quality components throughout, the modules are made of ABS Plastic and feature gold conductors for low impedance levels, all secured within a metal-framed enclosure. Full port ID comes as standard together with the option of modifying the port ID sequence.

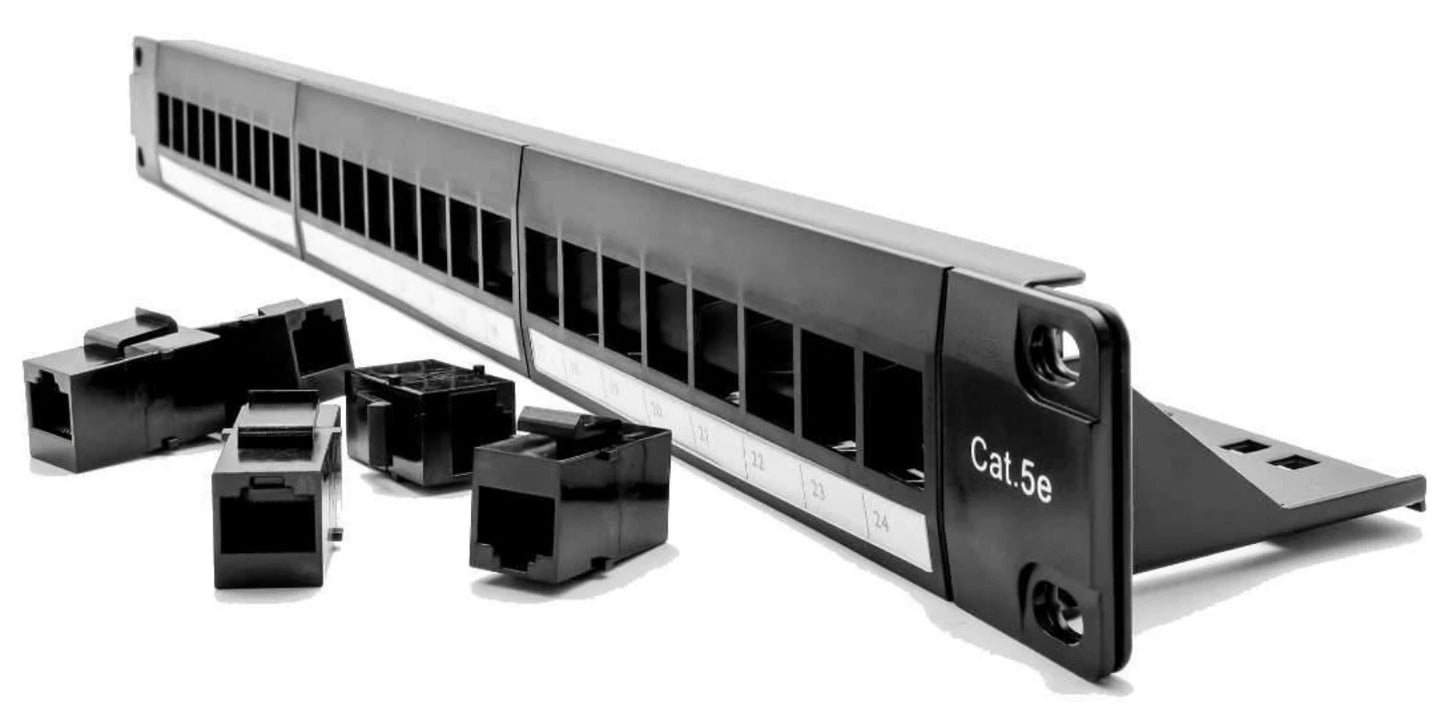

The LMS Data PPAN-24-THRU is 24 Port certified CAT5e UTP Patch Panel which is unique in that it has fully modular and replaceable CAT5eUTP ports. Simply snap in or snap out and mix and match with other accessories or when a port is damaged.

Fully Gigabit Ethernet certified means it's ideal for running legacy and advanced networking protocols to Gigabit Switches up to 1000Mbps. Also ideal for telecom, VoIP, CCTV-IP, and other Ethernet-based standards.

Long-life, nickel-plated female RJ45s, the port modules use a through-coupler system so simply connect a RJ45 terminated cable to the rear of the panel.



  • 24-Way UTP through coupler Patch Panel
  • Class-leading CAT5e/ISO-11801 compliant
  • Gold Plated, high-conductive connectors
  • Supports Gigabit (1000BaseT) Ethernet, Telco
  • Modular, field replaceable outlets, clip & fit
  • Front numbered, 1U high, 19” design
  • Ideal for fast-fit Structured Cabling installations


Technical Specifications

  • Port Count: 24 Ports UTP
  • Dimensions:1U 19-Inch Design Format
  • Design: Through Coupler System
  • Performance: 10/100/1000Mbps Gigabit Compliance
  • RJ45/IDC Connects: Nickel and Phosphor Bronze
  • Port Identification: Numbered
  • Fixings: Supplied M6 Nuts and Bolts


Package Includes

  • 1      x       24-Port 1U Rackmount CAT5E UTP Modular Patch Panel
