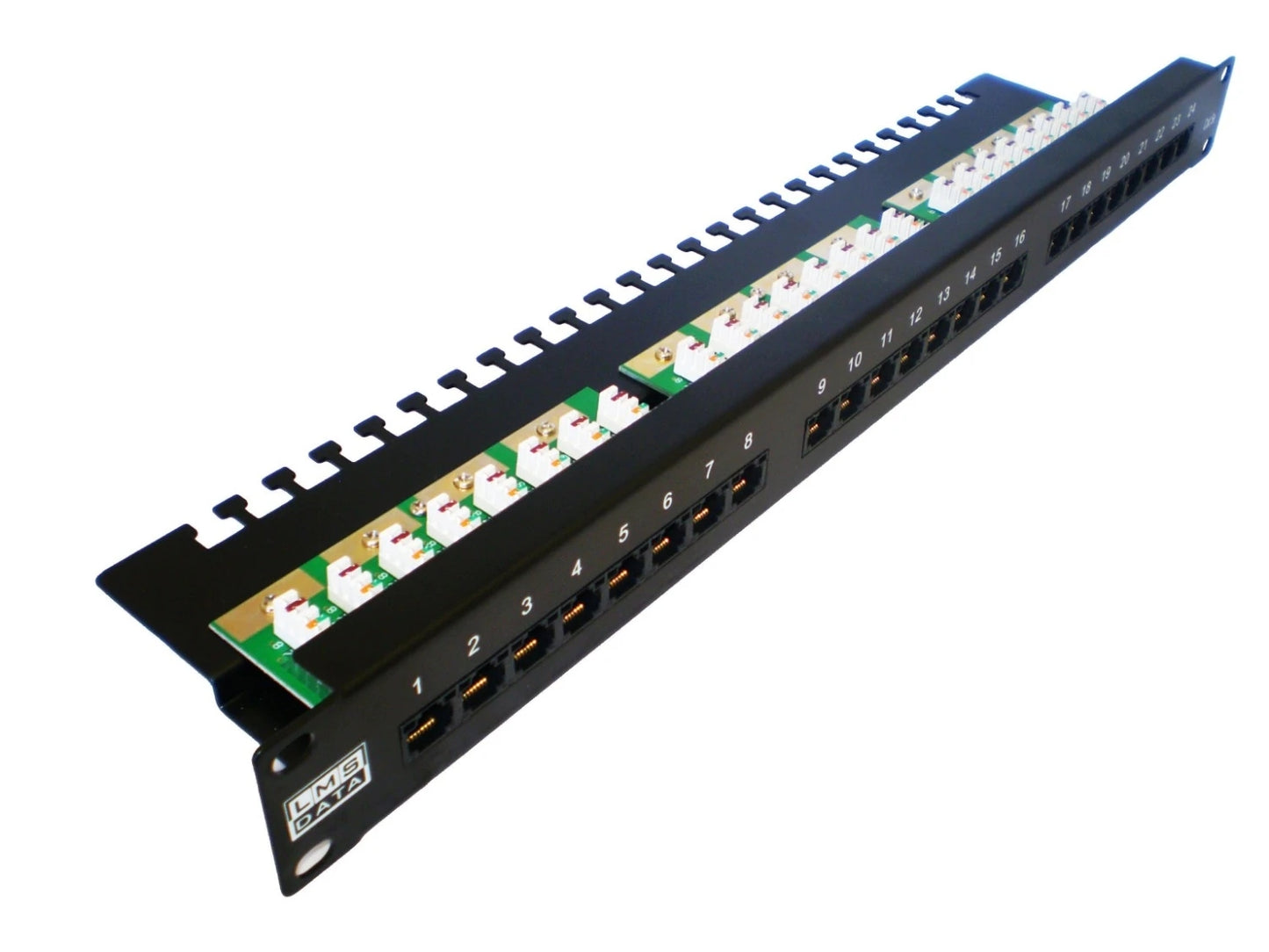

24 Port 1U Vertical Rackmount CAT5e UTP Patch Panel Plus Back Bar/PPAN-24-VLC

Regular price £44.01 GBP
Regular price Sale price £44.01 GBP
Sale Sold out
Tax included.

Built-in Ease of Maintenance.

Setting new standards in both performance and quality, the new LMS Data PPAN-24-VLC Vertical Punch down Patch Panel series offers full Cat5e compliance with up to Gigabit Ethernet compliance if your network requires it. Designed into a durable, full metal open chassis, this 24-Way, 1U high design is ideal for quick termination to the vertical IDC interconnect blocks and is the perfect match for Wall Mount enclosures which have little or no space for the regular rear-facing IDC Patch Panels or other locales were space is at a minimum. The LMS Data PPAN-24-VLC comes complete with rear cable anchor tabs; full TIA-568-A/B termination colors and front port number sequence. Ideal for both Data and Telecom applications.



Features

  • 19-inch wide category 5e patch panel
  • 24 RJ45 Ports for CAT5e Ethernet Cables
  • Compact and robust 1U form-factor design
  • Exceeds current category 5e performance
  • TIA-EIA-568A/B2.1with Krone AT&T (KATT) IDC
  • Phosphor bronze and Nickel IDC connectors
  • Gold over Nickel IDC connectors RJ45 connectors
  • Supports 22 to 26 AWG conductor diameters
  • Port identification and labeling facility
  • Bundled cage nuts for cabinet attachment



Technical Specifications

  • Port Count 24 Ports UTP
  • Dimensions 1U 19-Inch Design Format
  • Conformance TIA-EIA-568A/568-B Coded IDC
  • Performance 10/100/1000Mbps Gigabit Compliance
  • RJ45/IDC Connects Nickel and Phosphor Bronze
  • Port Identification Numbered and Bespoke ID Marker
  • Fixings Supplied M6 Nuts and Bolts



Package Includes

  • 1     x    24 Port 1U Vertical Rackmount CAT5e UTP Patch Panel Plus Back Bar
