21depot

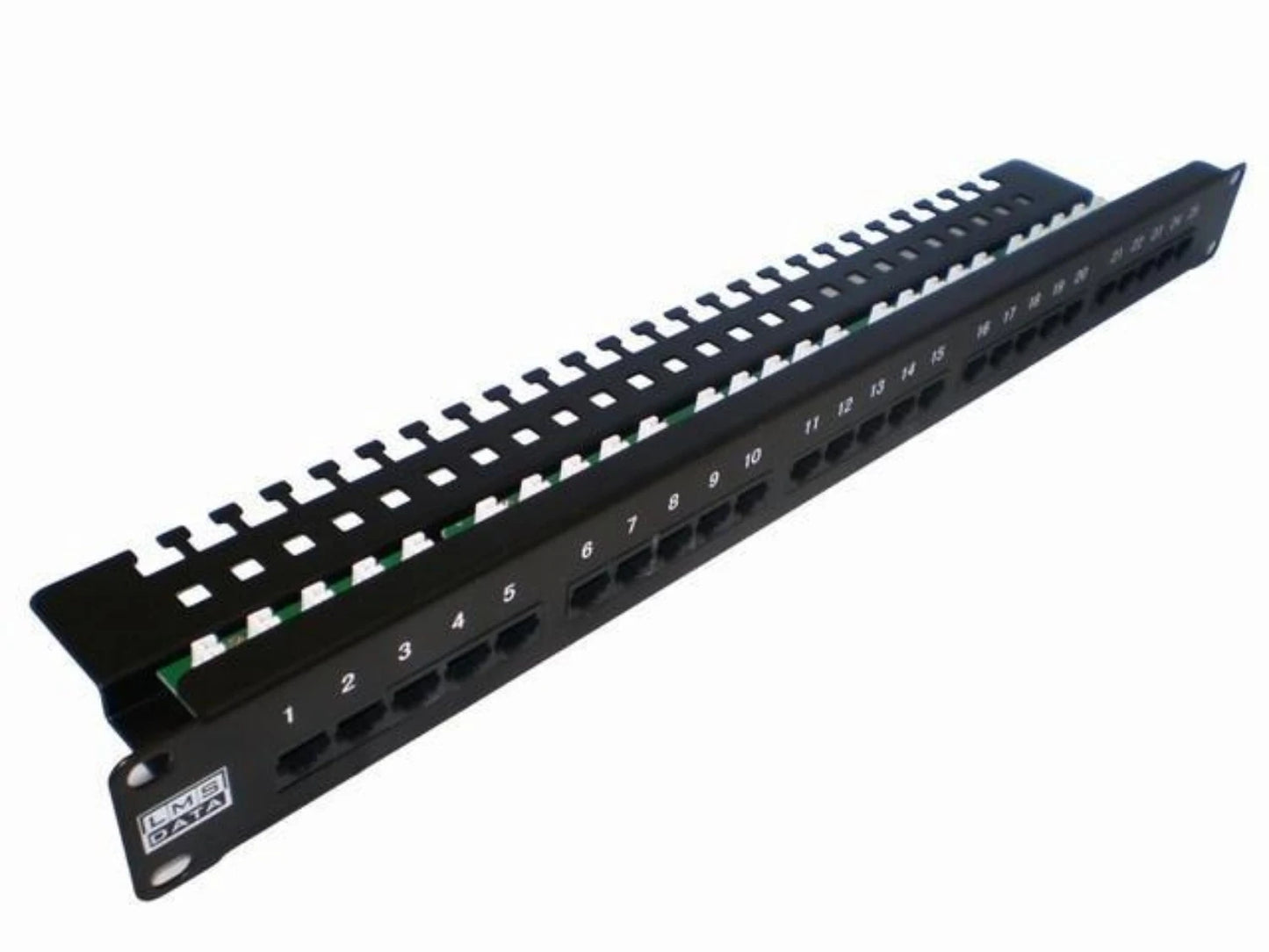

25 Port 1U Rackmount CAT3/TELCO 4-Pin Patch Panel/PPAN-25-T-4P

Regular price £23.58 GBP
Regular price Sale price £23.58 GBP
Sale Sold out
Tax included.

The LMS Data PPAN-25-T-4P is a 25-Port enhanced CAT3 and Telecommunications Patch Panel for working in low bandwidth applications of that of legacy PABX Telco applications.

Fully certified to CAT3/Telco standards allowing typical voice call cables to be terminated and thus patched via the 4-PIN front connection ports.

Long-life, nickel-plated female ports are coupled with a vertically designed Krone(tm) IDC terminal IDC together with a rear cable management bar and tabs.



Features

  • Certified CAT3/TELCO 25 Way Patch Panel
  • Standard 4-Pin Ports with Krone(tm) IDC Punchdown
  • 1u High means it fits in the smallest of data cabinets
  • Office and Educational Sector PBX Telecom Installations
  • Ideal for PBX Telco Switches, Alarm Systems, and Legacy Systems
  • Create fault-tolerant Voice Ports by simply patching ports



Specifications

  • 25-Way 1U High, 19” Wide Form Factor
  • Ideal for Telco and CAT3 type low bandwidth applications
  • Certified to ISO/IEC-11801 specifications, 4-pin
  • Krone® style rear horizontal IDC with 200+ insertion cycle
  • Gold-plated sockets for improved data flow and reduced resistance
  • 22-26AWG Data Cable compatible
  • Insulation resistance approx. 1000Mohms
  • Contact resistance approx. 7Mohms
  • Integral rear cable management anchor points
  • Quality metal casing with front Port Numbering



Package Includes

  • 1      x      25 Port 1U Rackmount CAT3/TELCO 4-Pin Patch Panel
