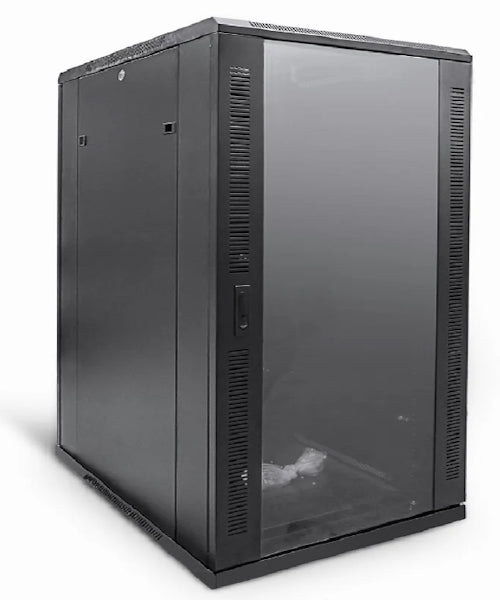

19" 27U Floor Standing 600x800 Data Cabinet/CAB-FE-27U-68

Regular price £448.81 GBP
Regular price Sale price £448.81 GBP
Sale Sold out
Tax included.

Redefining quality ergonomics for your telco, networking & PBX needs

Cost-effective and quality enclosures for your structured cabling, networking, and broadcast projects.

Offering excellent quality coupled with value for money, this new 27U 800mm deep Data Cabinet Rack Mount Rack Enclosure is ideal for your IT installation, no matter how big or small. Designed to exacting standards, the Data Cabinet Rack Mount Rack range offers total networking and high-valued IT device containment, coupled with ease of installation and accessibility for post maintenance. Used throughout both Public and Private Sector installations across the UK and Europe, these Data Cabinets feature genuine useful features including superior hot air venting (both passive and active), heavy-duty vertical uprights both front and back with can be fully adjusted, and multiple cable entry points for correct cable placement.

Standard front and rear 19" uprights (which are fully adjustable) mean they will host any number of Networking, Telco, VoIP, CCTV, or Patch Panels. Using the standard 600mm(w) X 800mm(d) design, the Enclosure is also available as an 800mm(w) X 1000(d) design for installations that need more space for cable patching, etc.



  • Ideal for Rackmountable Switches, Rackmount UPS, and PABX systems
  • 27U H1370mm x W600mm x D800mm is ideal for most IT/telecom/CCTV systems
  • Universal 19" design supports all Rackmount active and passive products
  • Superior ventilation with the inclusion of a roof-mounted Fan Tray cluster and venting slots throughout
  • Quality construction means your hardware stays protected for longer
  • Useful design features including front U numbering, multiple cable entry points, and left/right door placement
  • Removable side panels with special, together with high-quality locks on the front Glass door (options available)
  • Bundled accessories include FREE: 'Roof-Mounted' Fan Tray, Castors, Jacking Feet, Cage Nuts and Bolts, Vented Shelf
  • Assembled in the UK


Technical Specifications

  • Standard, UK type Free Standing Enclosure
  • RAL9044 Black powder-coated
  • Weight: 85kg
  • Dimension: 600(width) x800(depth x1370mm(height)

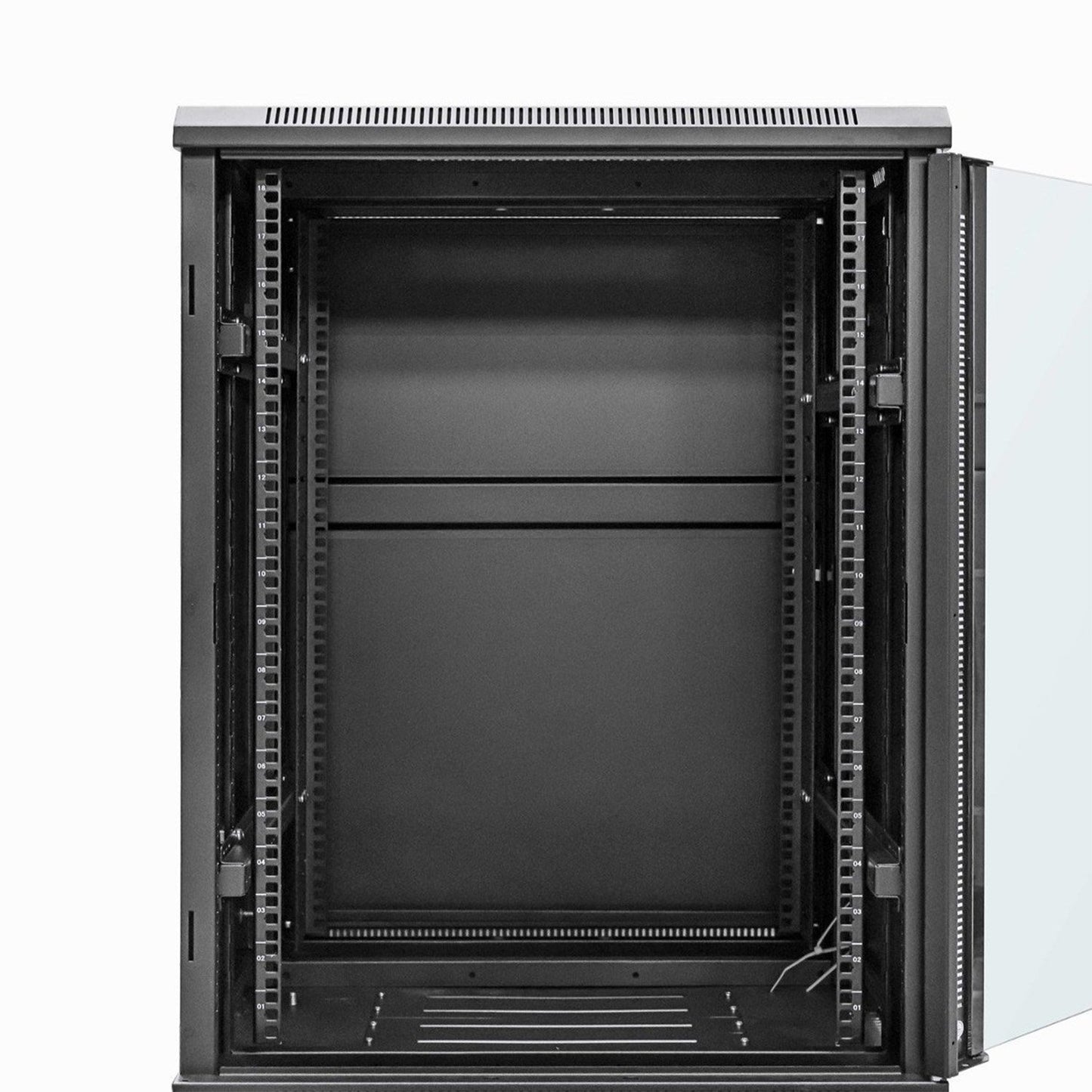

  • ETSI standard 19" Front and Rear vertical profiles

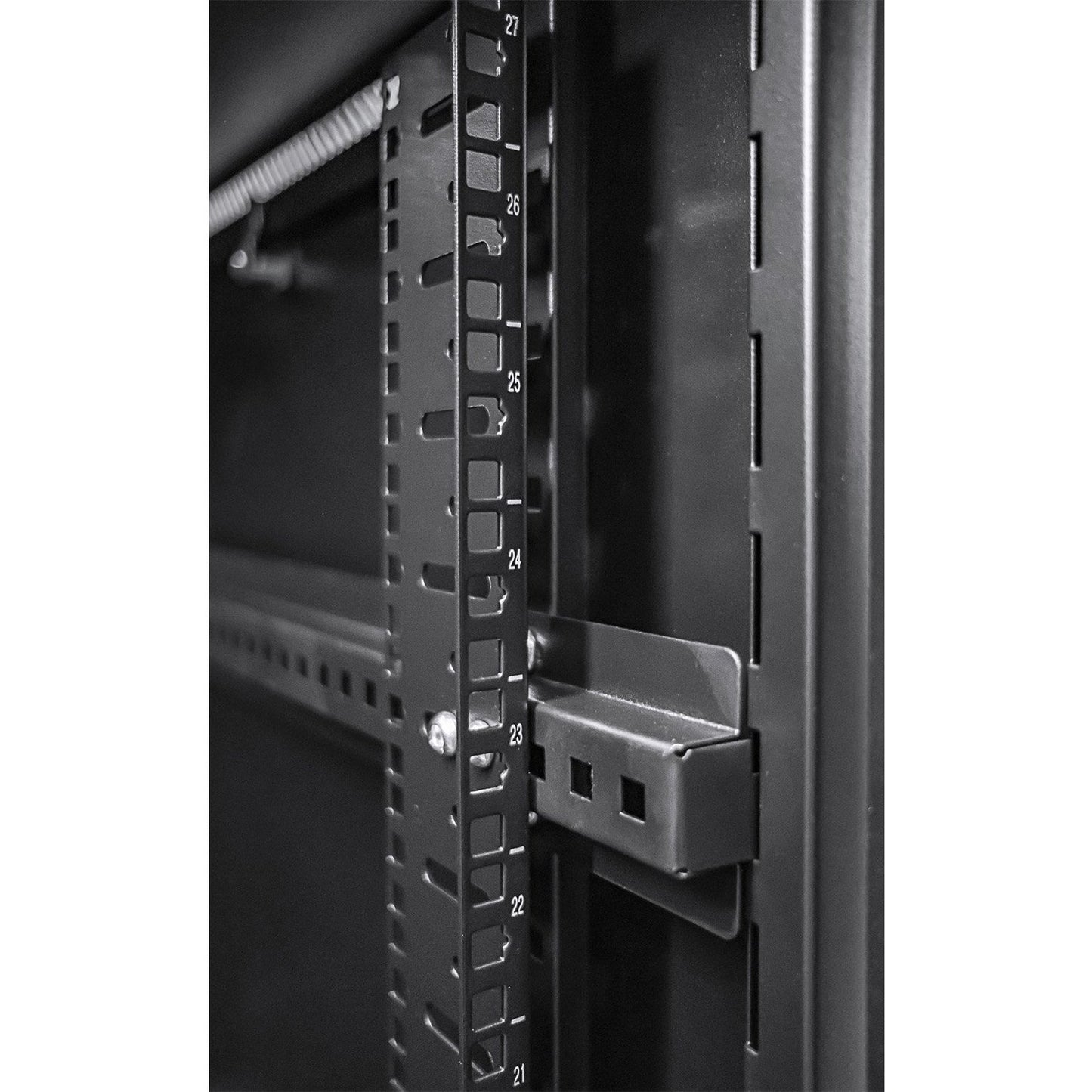

  • 2.00mm thick vertical profiles and fully adjustable
  • Up to 800Kg static load capacity (ideal for Telecoms, Data applications)
  • Integral Electrical Earth connector for improved electrical compliance

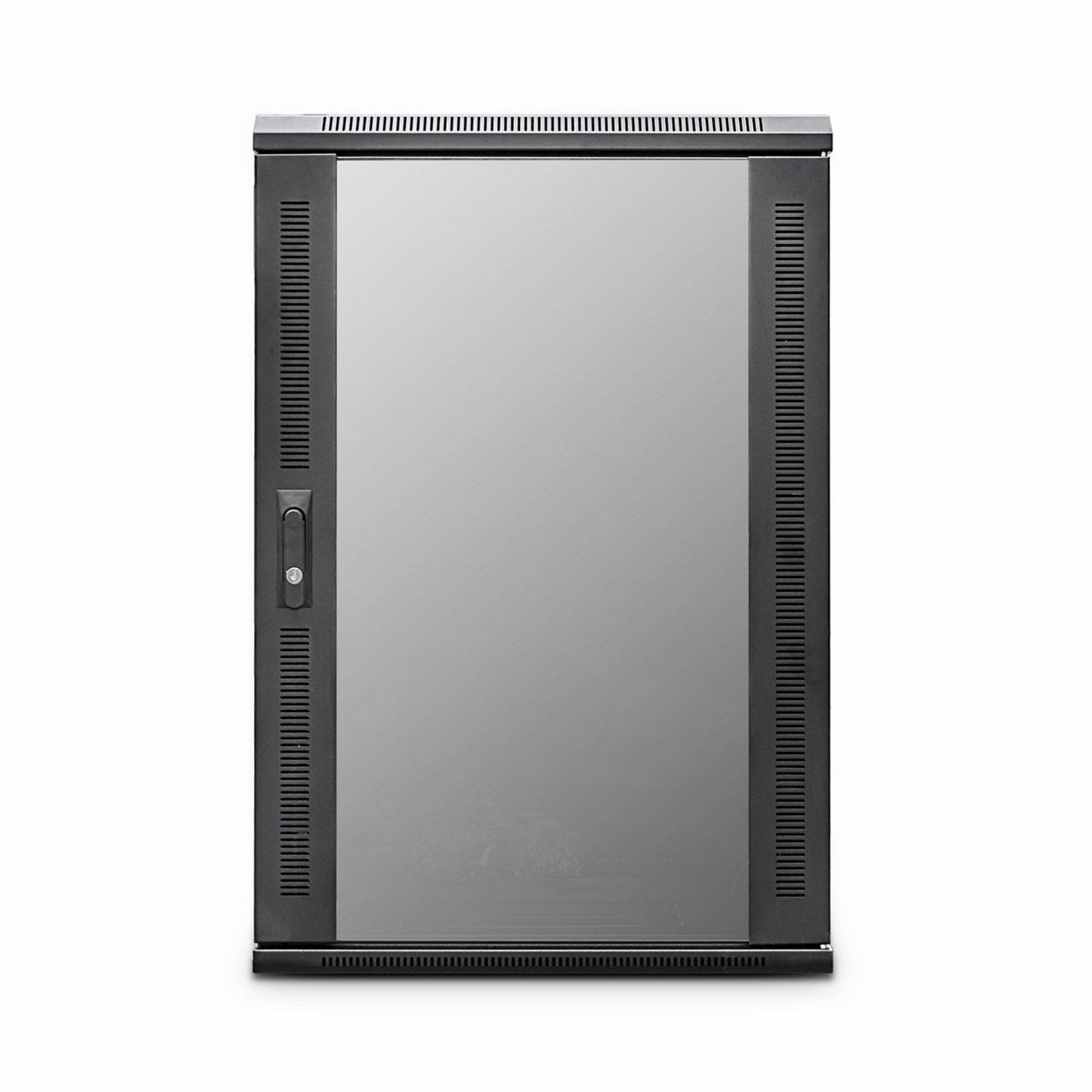

  • Lockable front Glass Door (Tempered safety glass)

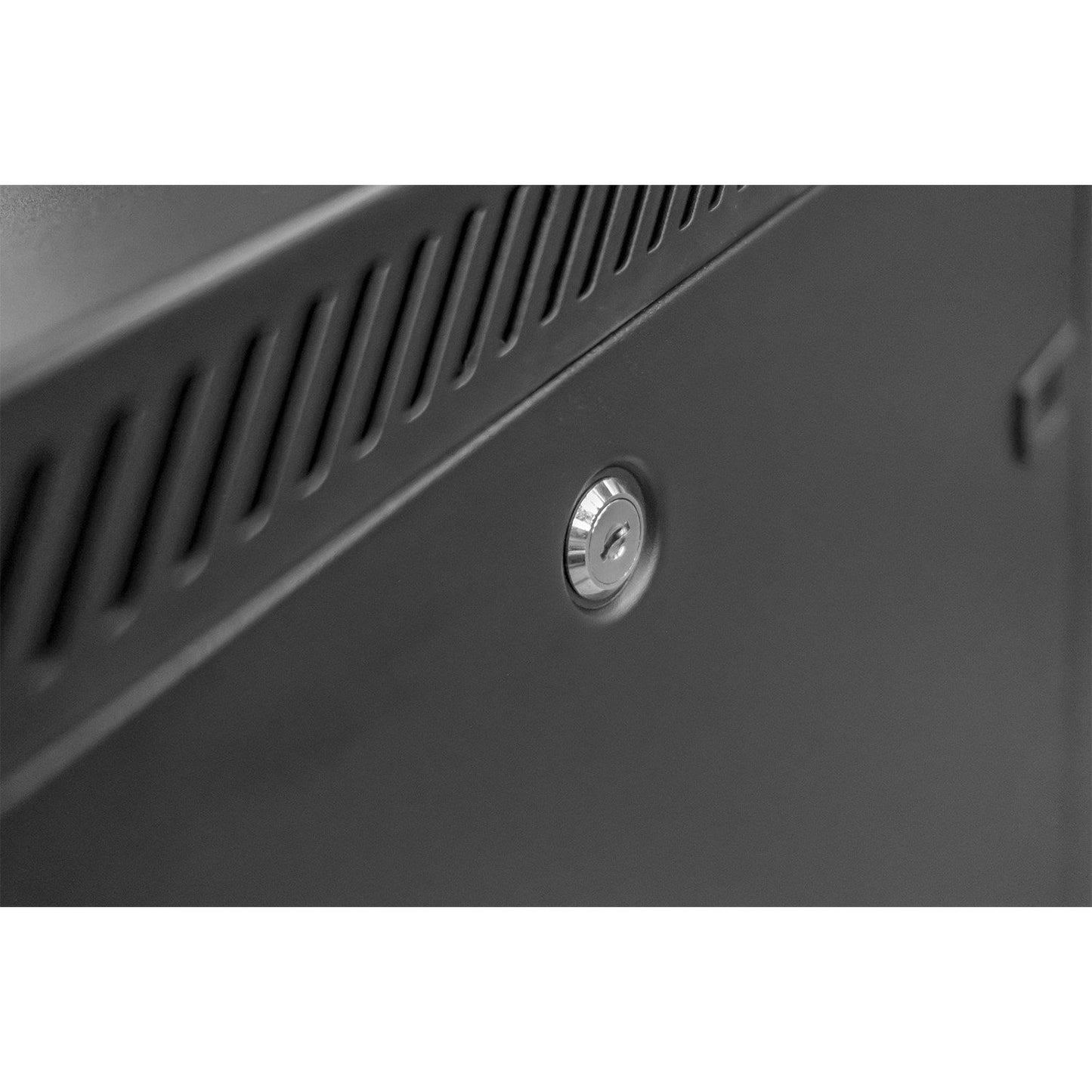

  • Lockable rear door
  • Front and Rear doors are fully reversible
  • Removable side panels to allow post-installation maintenance

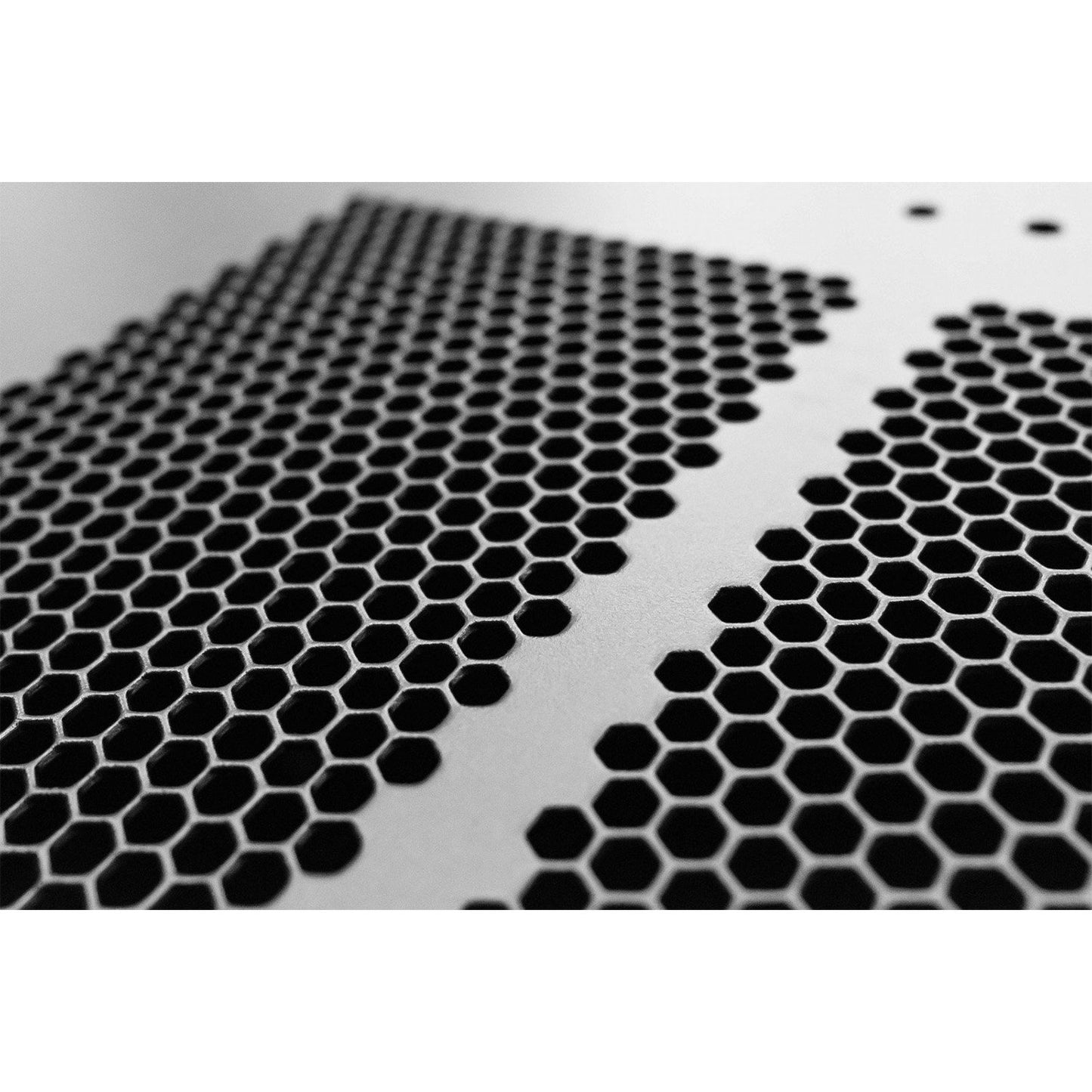

  • Front, rear, and top vented slots for improved airflow

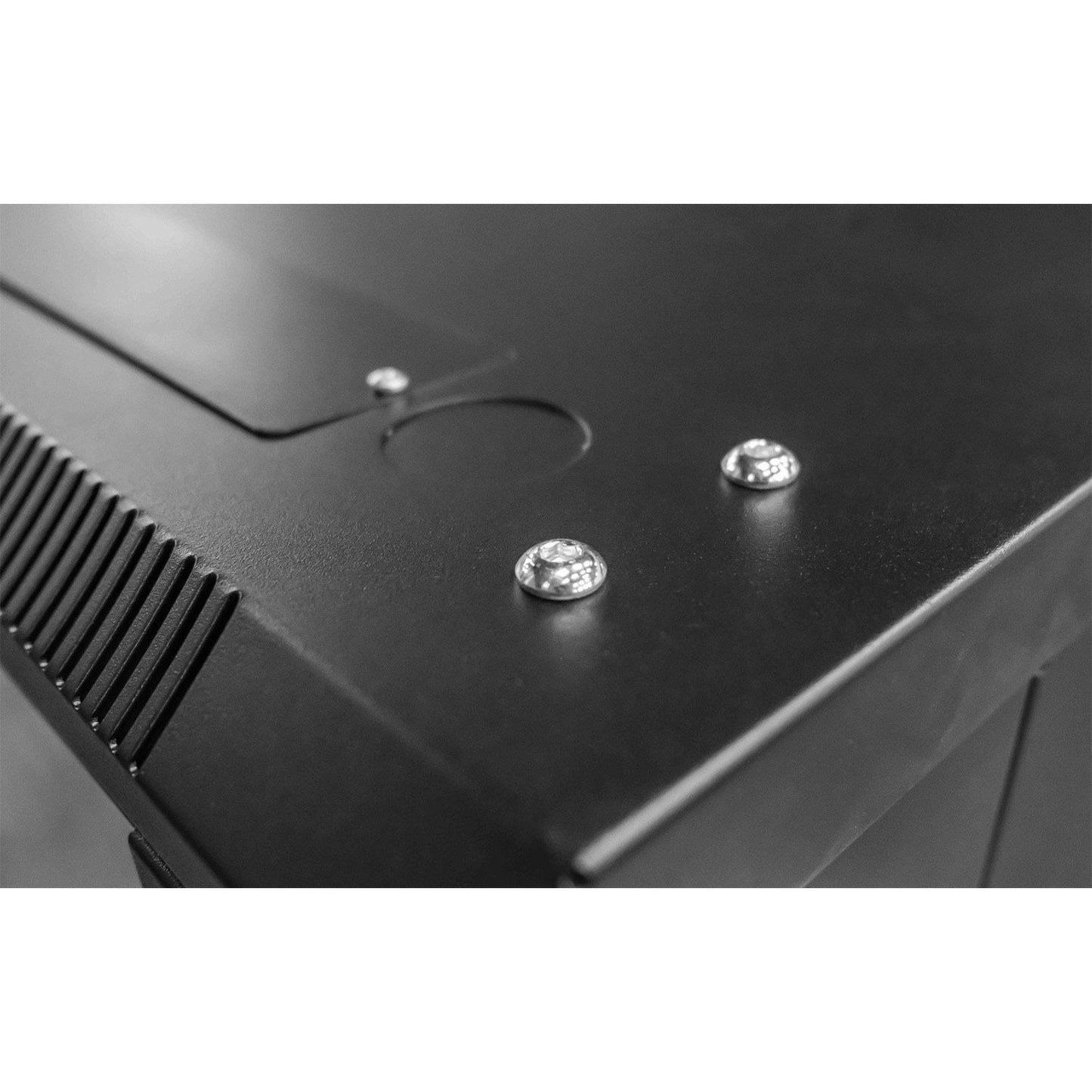

  • Multiple cable entry points to aid easy cabling routing

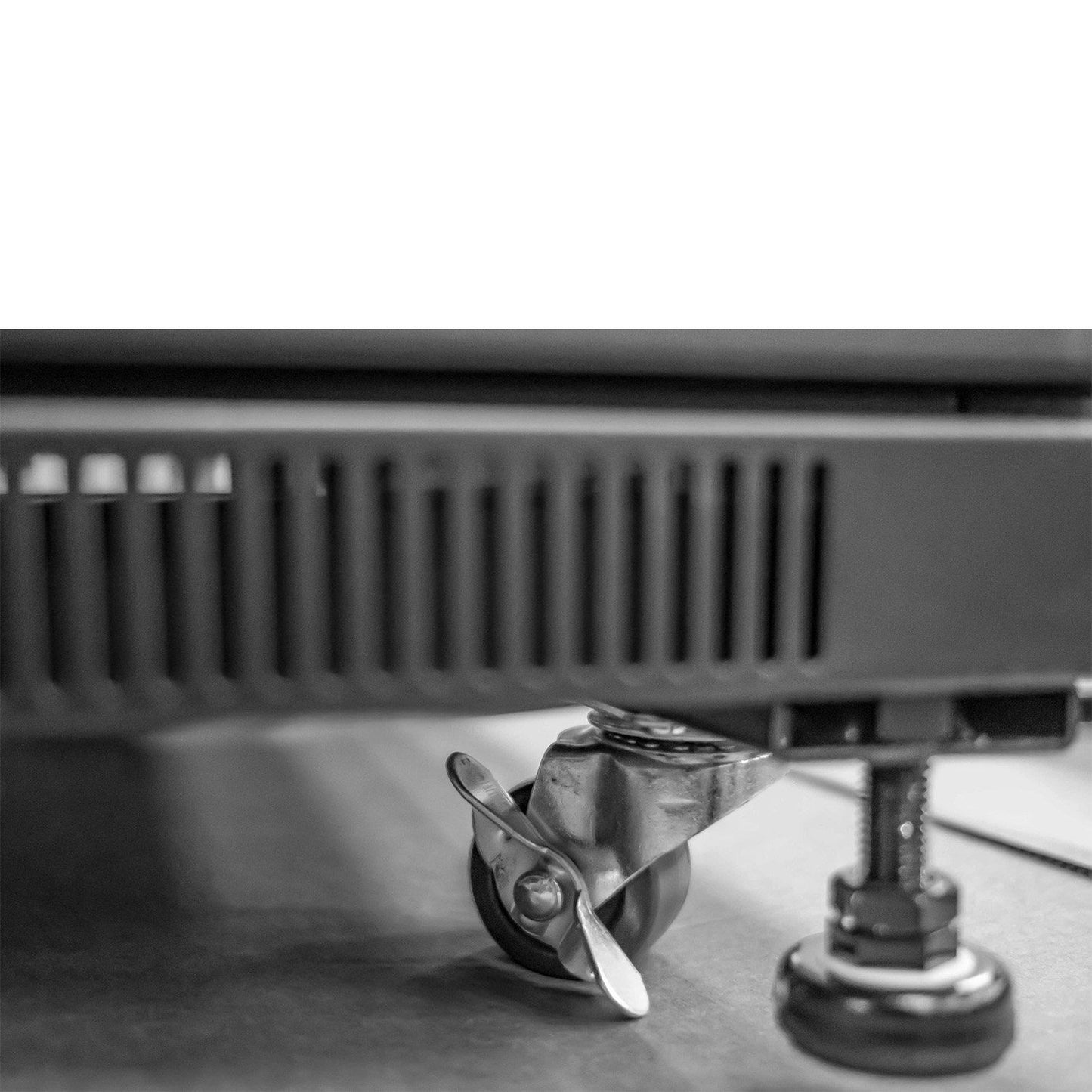

  • Attached are shipping/standard-duty castors with adjustable jacking feet
  • Supplied and fitted 'roof mount' Fan Tray for enhanced thermal cooling


Package Includes

  • 1     x      19" 27U Floor Standing 600x800 Data Cabinet
