Offering superior performance for your new or expanding Structured Cabling network, the new Category 5e UTP Patch Panel from LMS Data is ideal for all your installation projects.

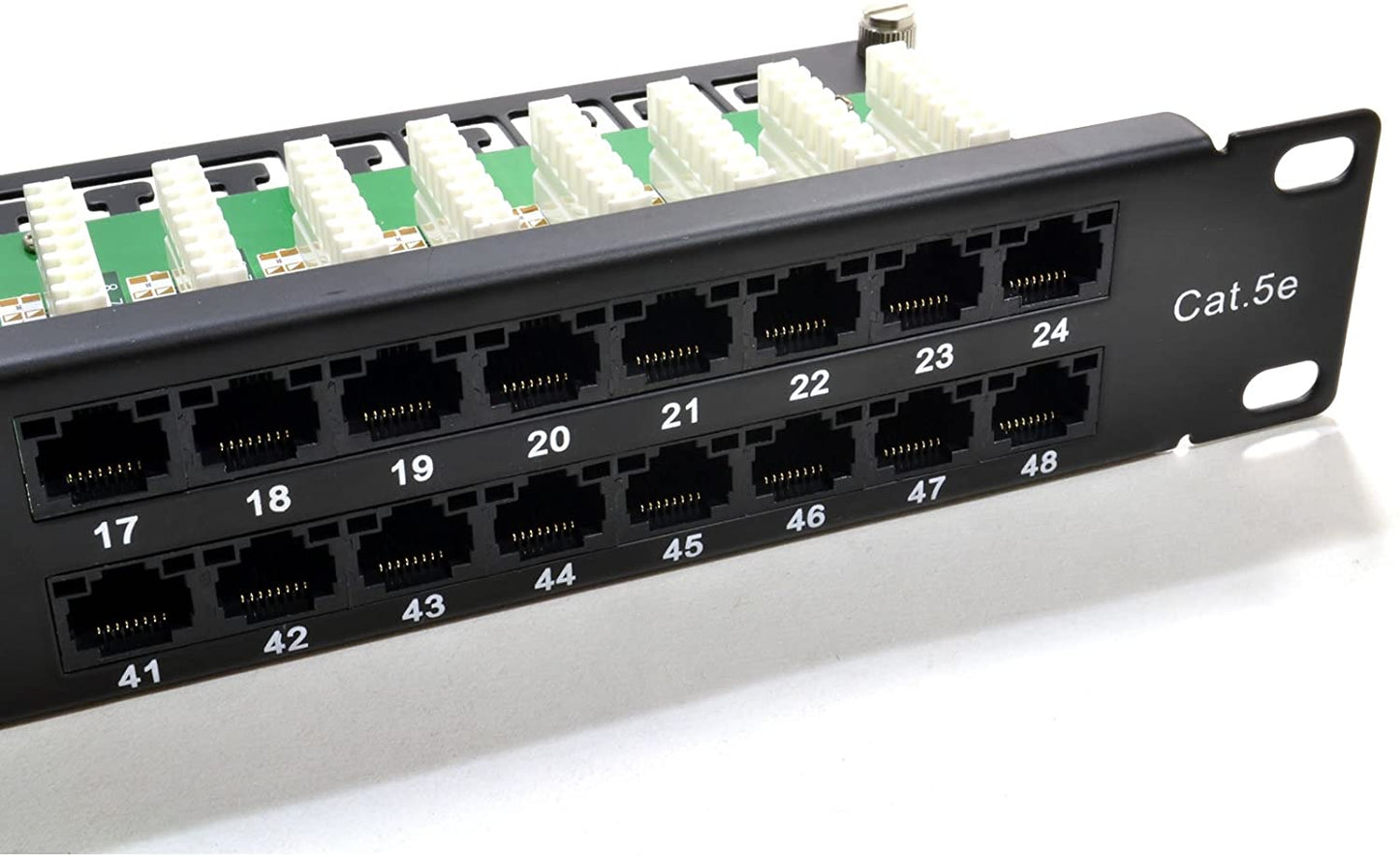

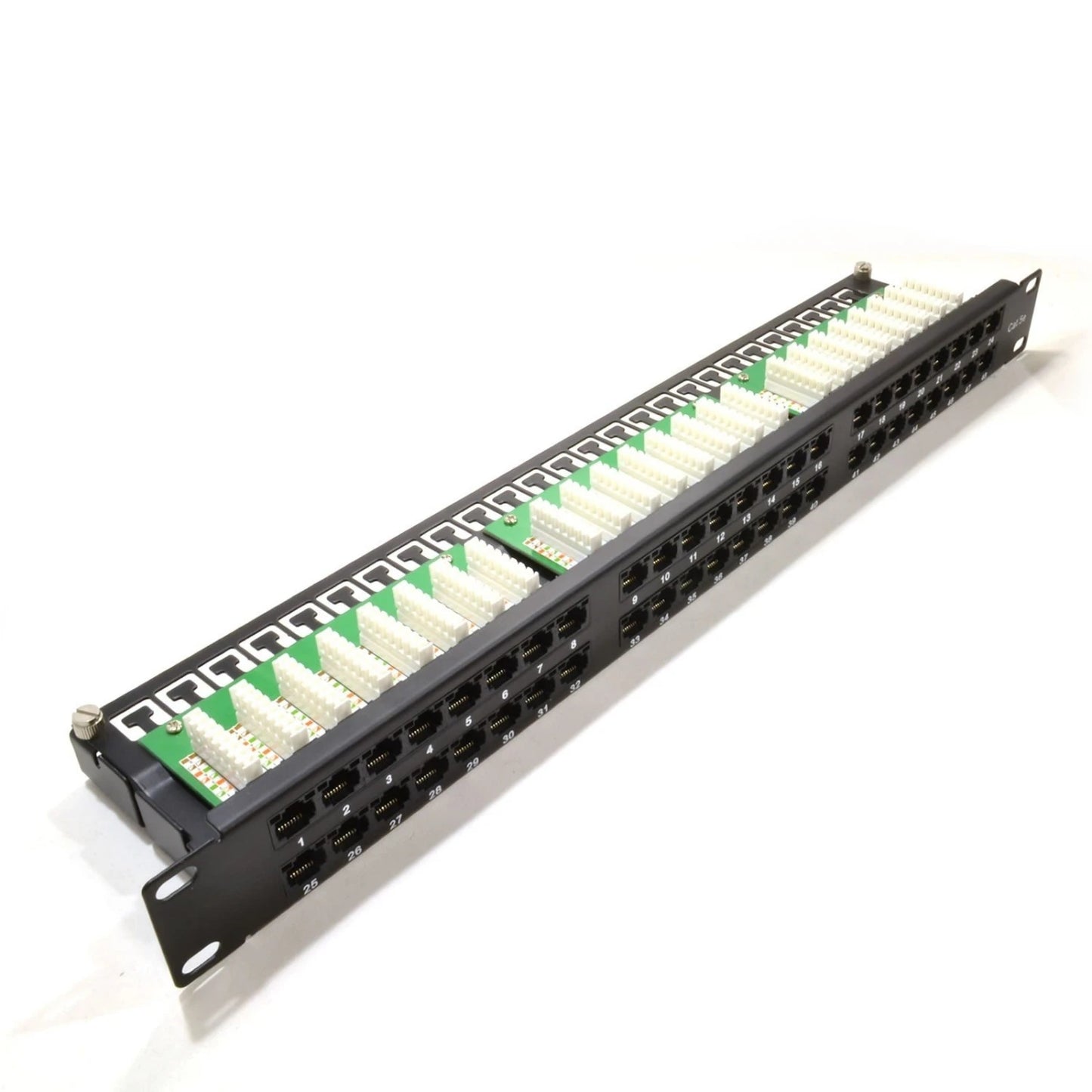

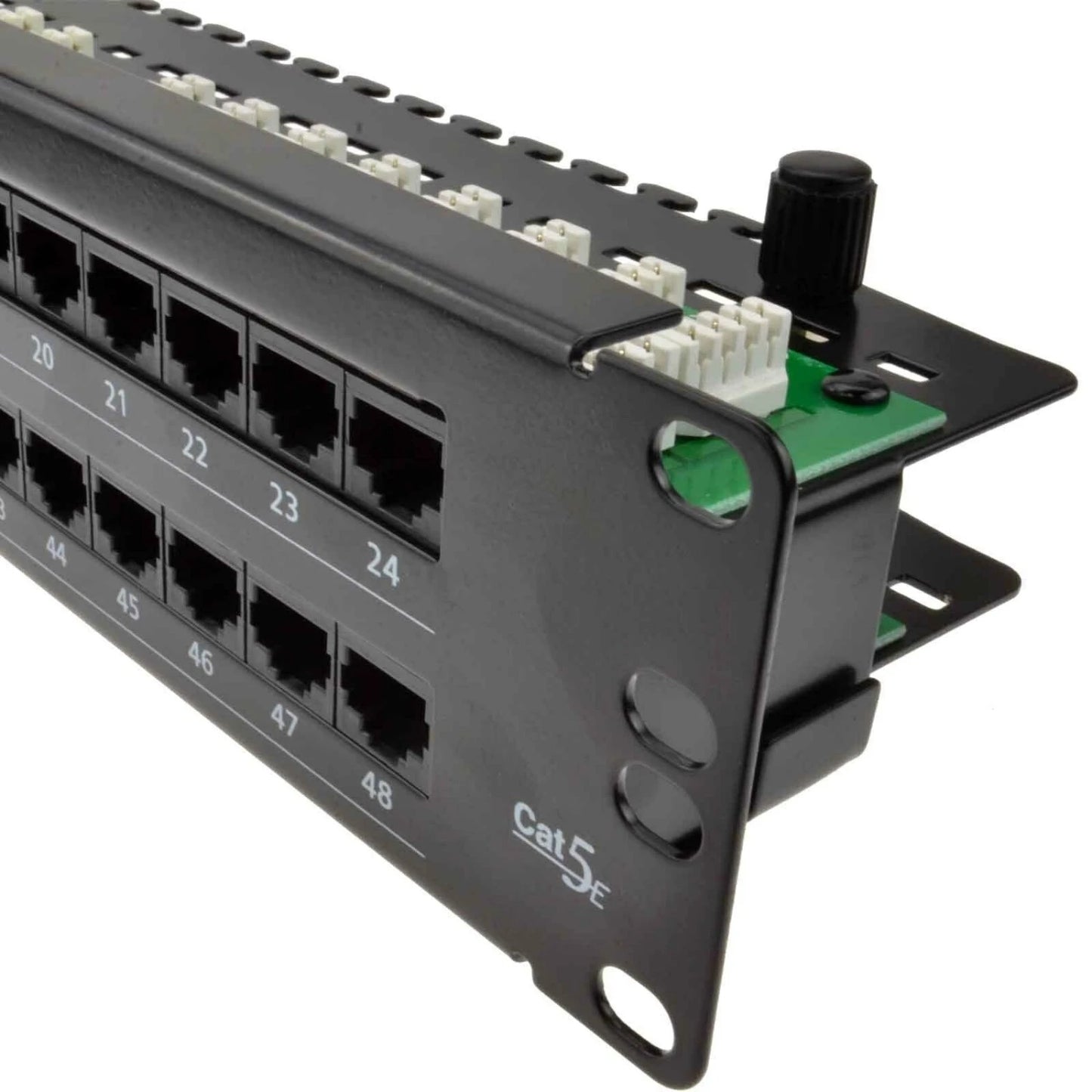

The PPAN-48-LC2 is a fully metal-designed panel with performance up to Category 5e (enhanced). With a black, semi-gloss finish the Patch Panel comes with high-quality standard IDC terminations to allow a high amount of re-terminations using multiple-size AWG data cables. Fully TIA-ETA-568A/B compatible and ideal for both Voice and Data applications up to 1000BaseT (Gigabit Ethernet), quality is further proven with the addition of Gold over Nickel plated jack contacts and fully enclosed connection PCBs to further reduce interference and increase Signal quality margins to help get the most of your future network requirements.

Features

•  Certified CAT5E Performance for Gigabit Ethernet
• Popular Krone(tm) KATT Dual Purpose IDC Punchdown
• 2u High-Density 24 Port Cat5e Ports Mitigates Costs
• Office, Education, and Home Structured Cabling Installs
• Ideal for Gigabit Ethernet (1000Mbps) Data Networks

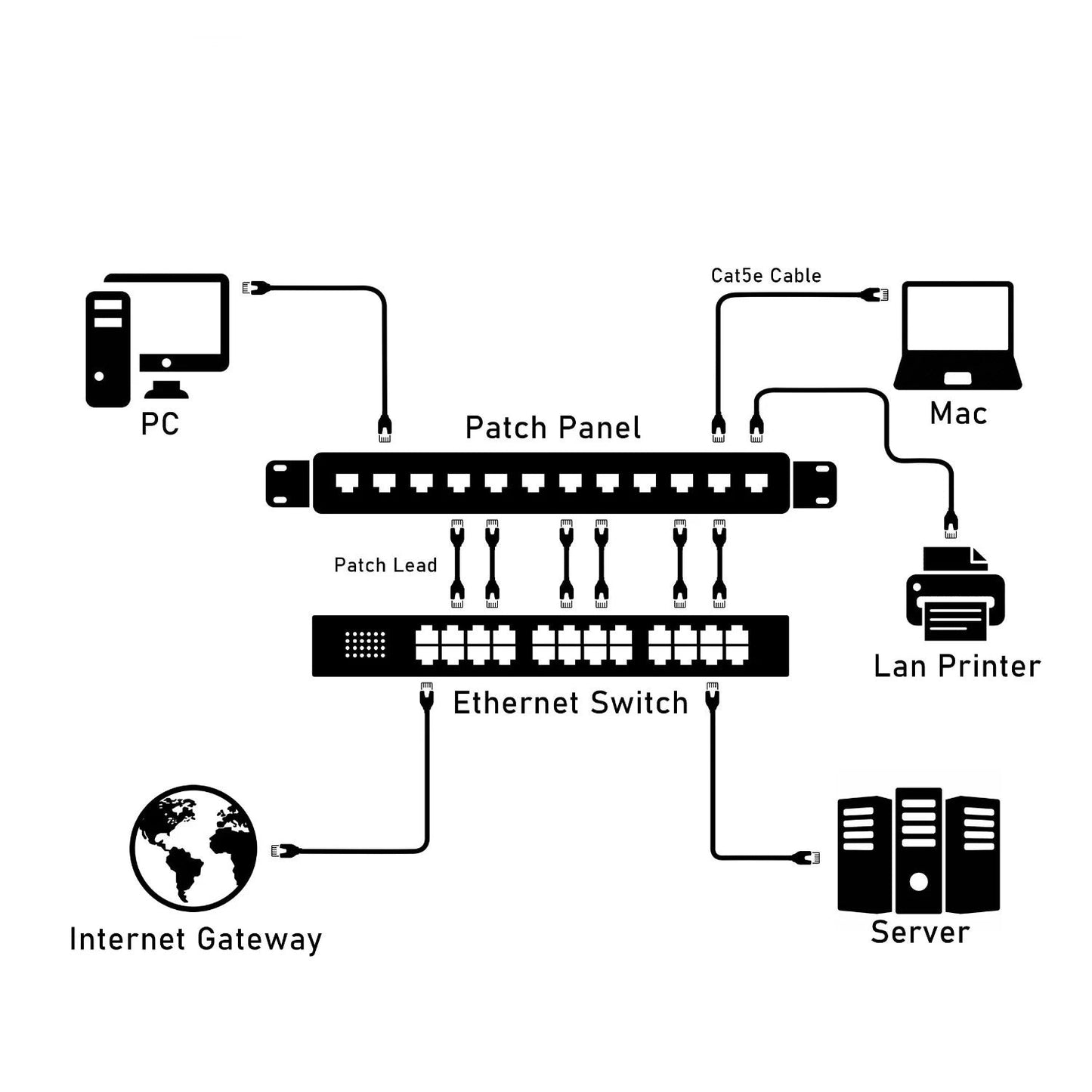

• Create fault-tolerant LANs by simply patching ports


Specifications

• Port Count 48 Ports UTP
• Dimensions 2U 19-Inch Design Format
• Conformance TIA-EIA-568A/568-B Coded IDC
• Performance 10/100/1000Mbps Gigabit Compliance
• RJ45/IDC Connects Nickel and Phosphor Bronze
• Port Identification Numbered and Bespoke ID Marker
• Fixings Supplied M6 Nuts and Bolts

Package Includes

• 1       x       48 Port 2U Rackmount CAT5E UTP Patch Panel
