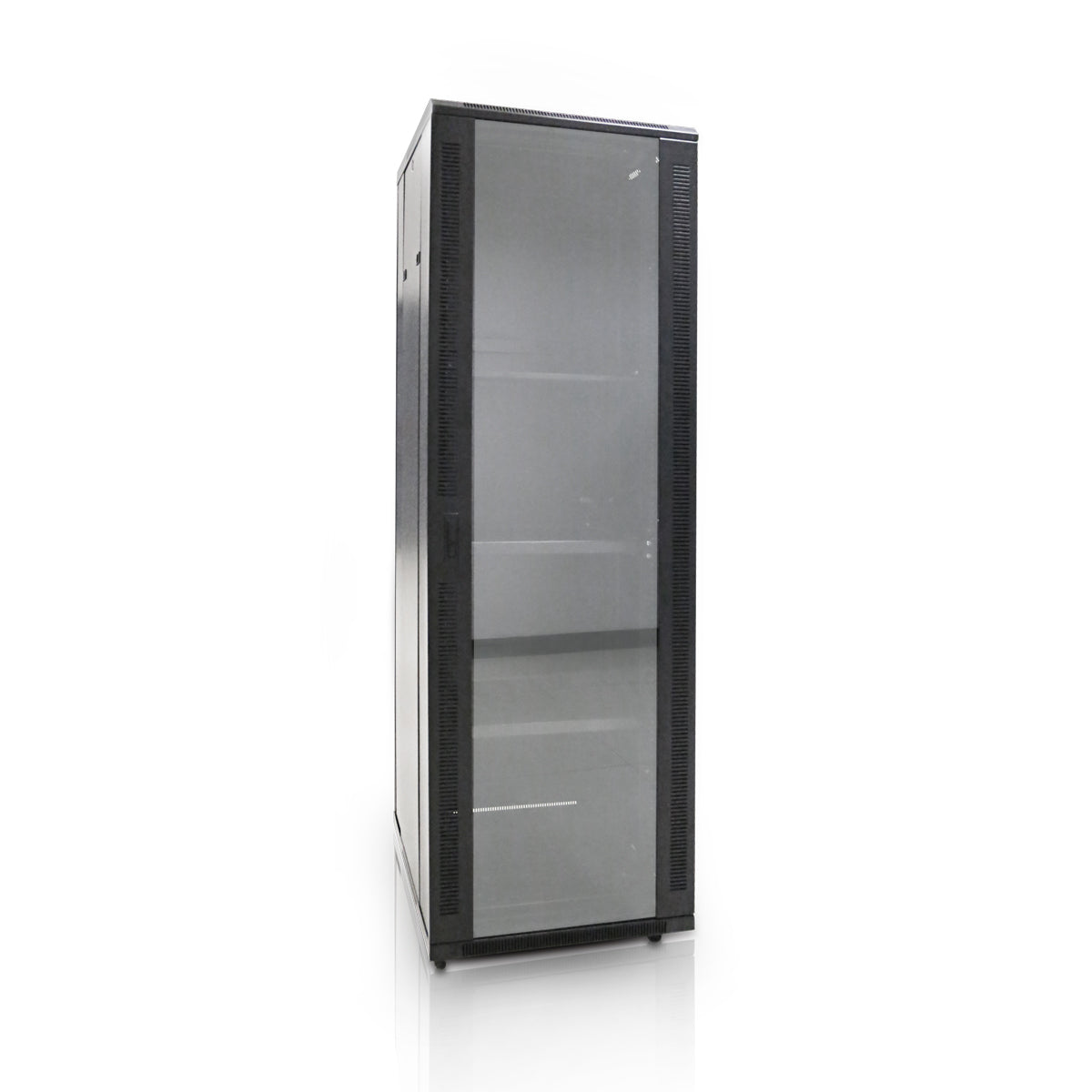

36U 19" Cabinet 600X600 Floor Standing Data Rack/CAB-FE-36U-66NA

Regular price £247.92 GBP
Regular price Sale price £247.92 GBP
Sale Sold out
Tax included.

Quality Assembled, Competitively Priced.

Need a well-priced but quality built data and telecoms cabinet for your installation or project?

With the assurance of the product line being expertly assembled in the UK to
the same attention as the rest of the LMS Data EcoNetCab range, the ValuCabs
offer all the cabinet functionality you’ve come to expect from LMS Data including
adjustable 19-inch uprights, remove side panels, front and rear (reversible) lockable
doors and a multitude of cable entry areas.

Offering excellent quality coupled with value for money, this 36U 600mm deep Data Cabinet Server Enclosure is ideal for use as an IT Data system, Network Storage NAS cabinet, or telecom installation, no matter how big or small. Designed to exacting standards, the Data Cabinet Rack Mount Rack range offers total networking and high-valued IT device containment, coupled with ease of installation and accessibility for post maintenance. Used throughout both Public and Private Sector installations across the UK and Europe, these Data Cabinets feature genuine useful features including superior hot air venting (both passive and active), heavy-duty vertical uprights both front and back with can be fully adjusted, and multiple cable entry points for correct cable placement.

Ideal for telecom, networking, and mixed media applications including CCTV,
broadcast and other data applications, the ValuCab range starts at just 18U, right up
to 42U for larger installations. A choice of standard 600mm and 800mm wide (free
cable management on the 800mm version) and a choice of either industry-standard
600mm deep, or deeper 800mm for larger equipment deployments.


Features

  • Ideal for Rackmountable Switches, Rackmount UPS, and PABX systems
  • 36U H1780mm x W600mm x D600mm is ideal for most IT/telecom/CCTV systems
  • Universal 19" design supports all Rackmount active and passive products
  • Quality construction means your hardware stays protected for longer
  • Useful design features including front U numbering, multiple cable entry points, and left/right door placement
  • Removable side panels with special, together with high-quality locks on the front Glass door (options available)

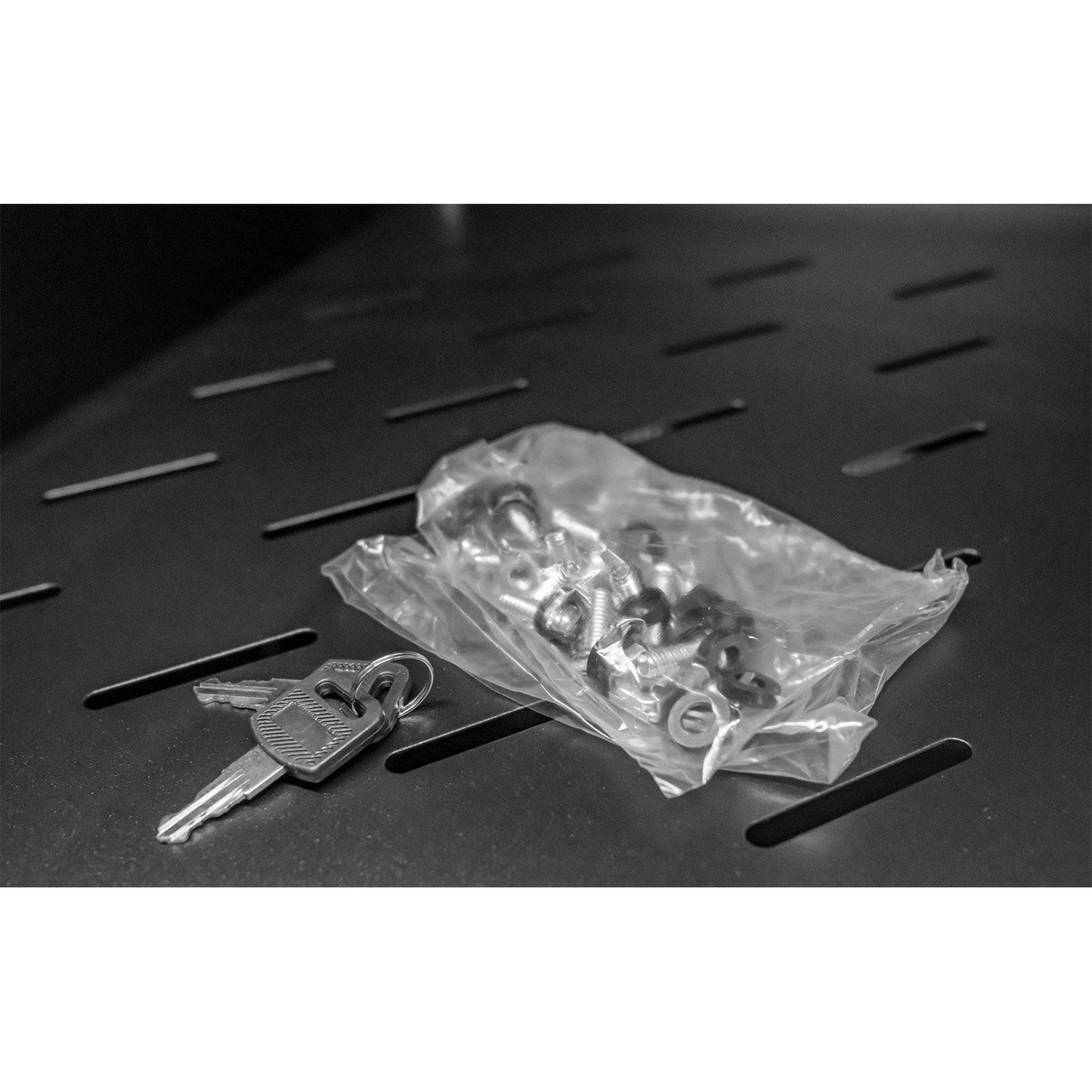

  • Bundled accessories include FREE: Castors, Jacking Feet, Cage Nuts, and Bolts.
  • Assembled in the UK



Technical Specifications

  • Standard, UK type Free Standing Enclosure
  • RAL9044 Black powder coated
  • Weight: 100.0Kg
  • Dimensions: 600(width) x600(depth) x1780mm(height)

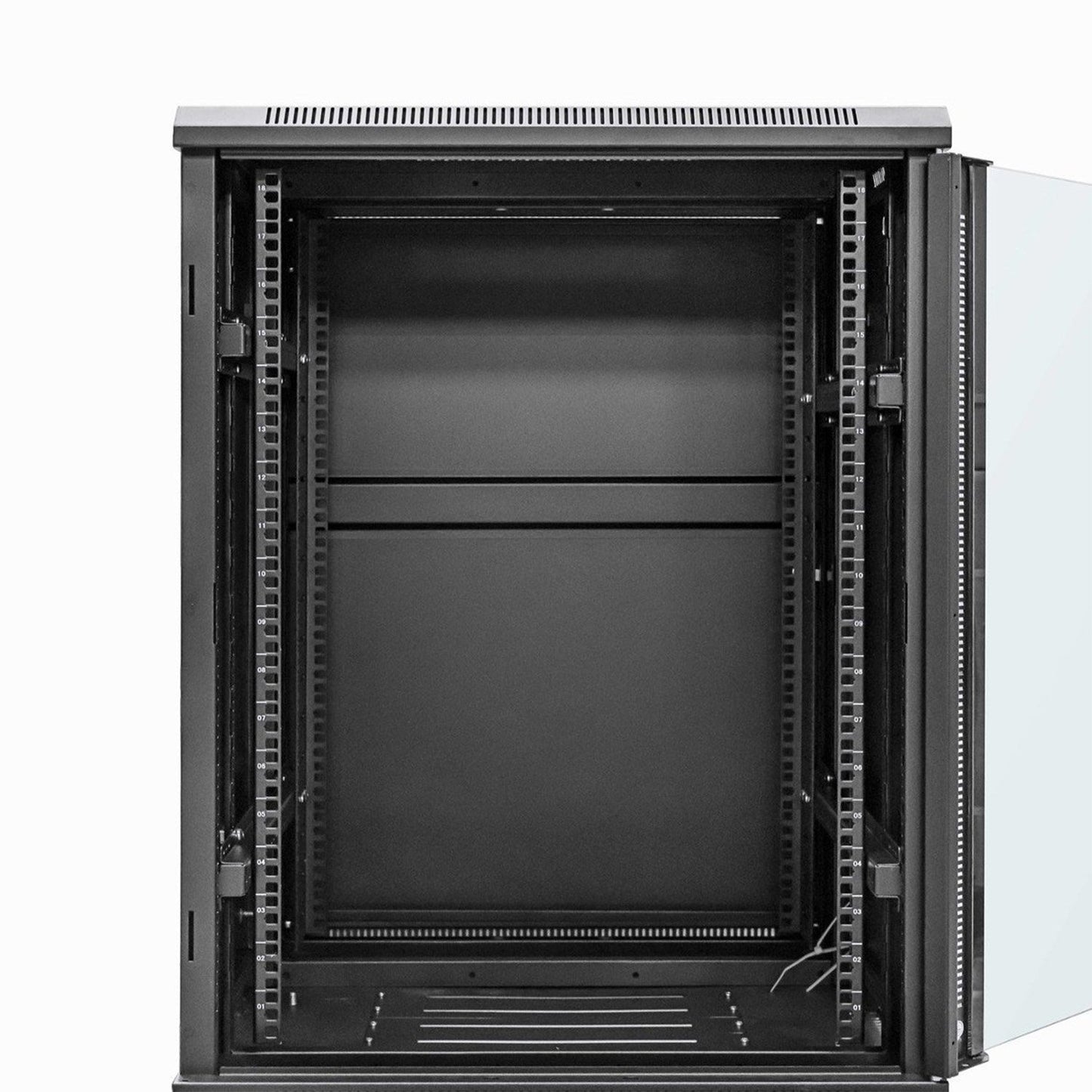

  • ETSI standard 19" Front and Rear vertical profiles
  • 2.00mm thick vertical profiles and fully adjustable
  • Up to 800Kg static load capacity (ideal for Telecoms, Data applications)
  • Integral Electrical Earth connector for improved electrical compliance

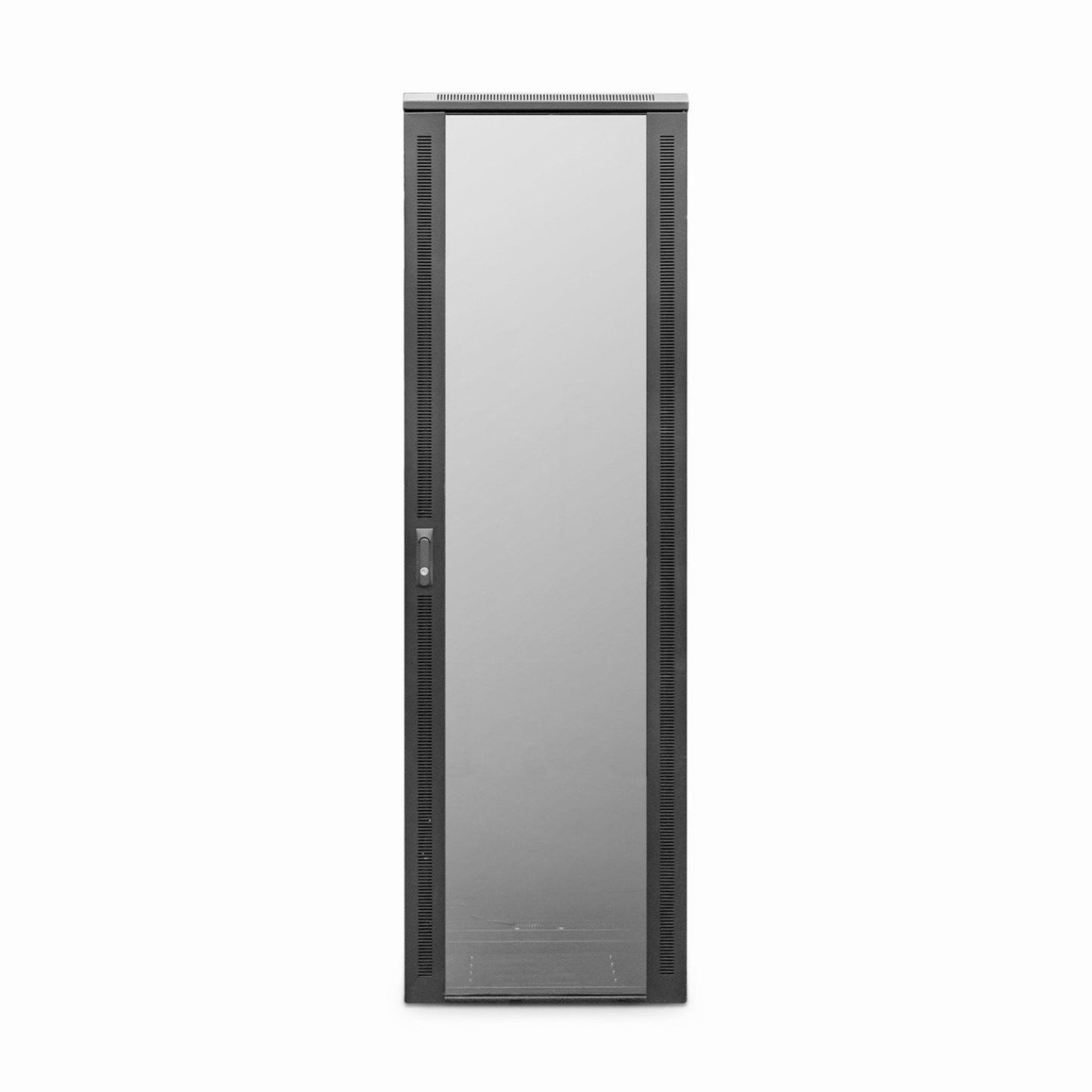

  • Lockable front Glass Door (Tempered safety glass)
  • Lockable rear door
  • Front and Rear doors are fully reversible
  • Removable side panels to allow post-installation maintenance

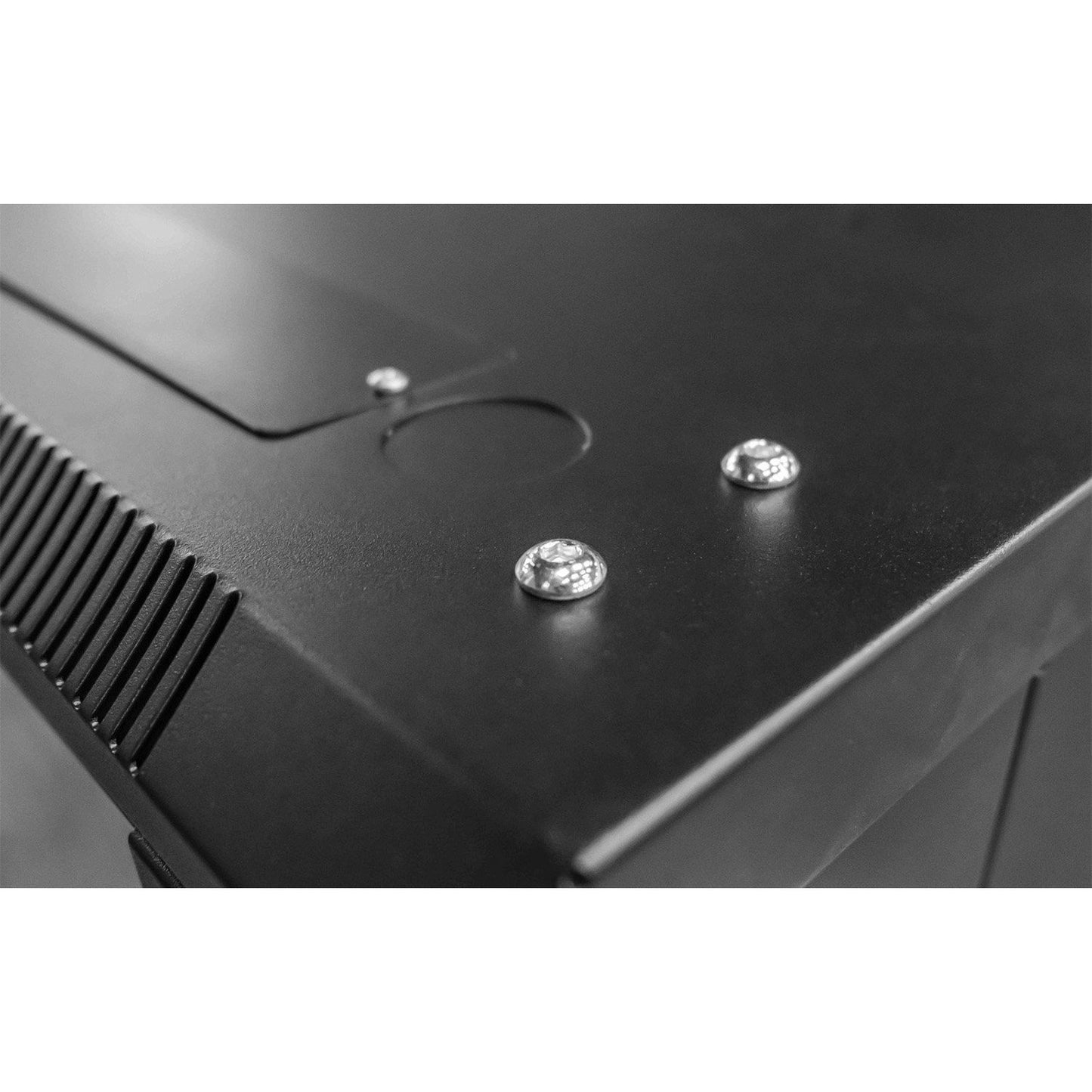

  • Front, rear, and top vented slots for improved airflow
  • Multiple cable entry points to aid easy cabling routing
  • Attached are shipping/standard-duty castors with adjustable jacking feet



Package Includes

  • 1    x     36U 19" Cabinet 600X600 Floor Standing Data Rack
