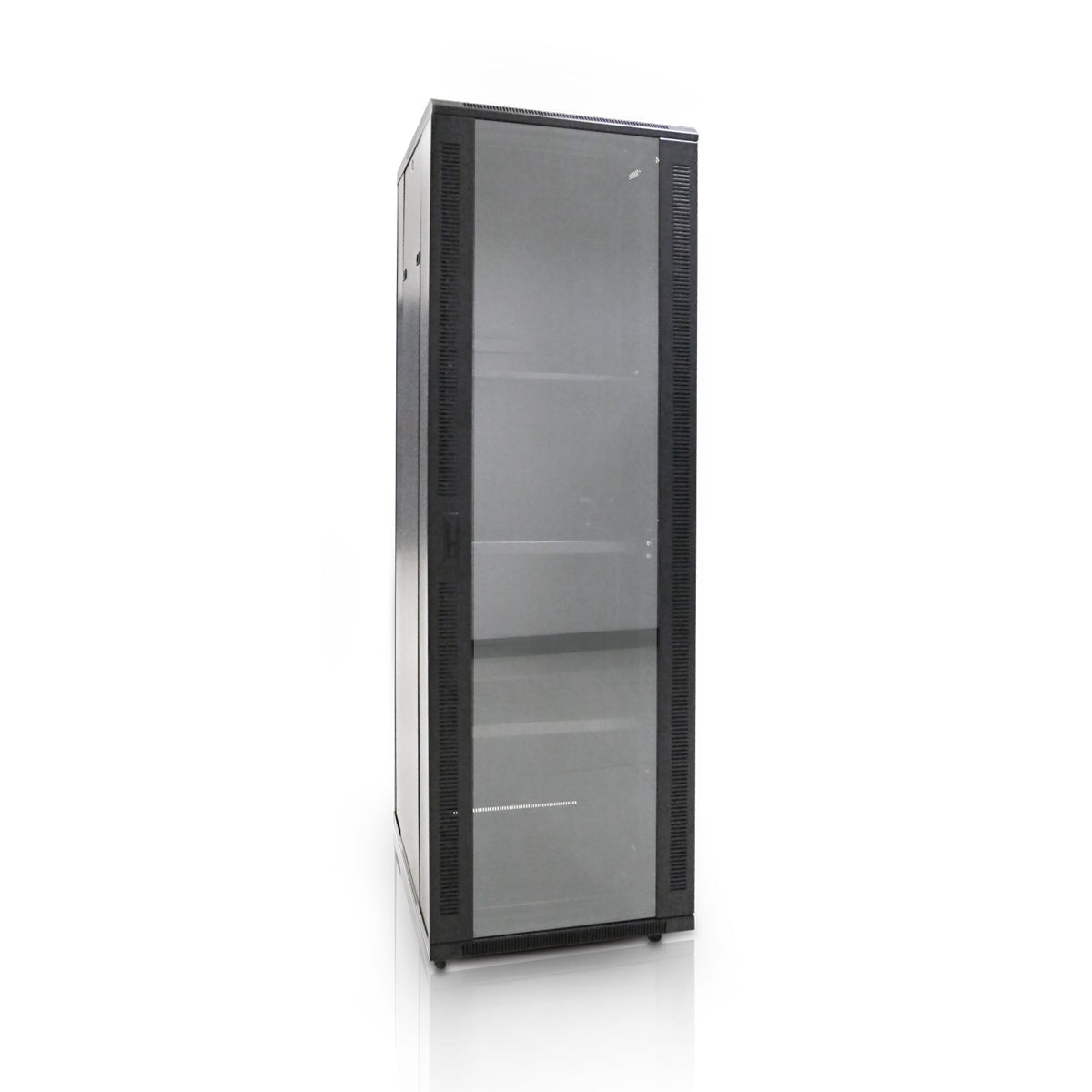

47U 19" Cabinet 600X600 Floor Standing Data Rack/CAB-FE-47U-66

Enterprise Level Quality With A Competitive Edge.

Quality and flexibility with bundled accessories help make your enterprise-level installations much more cost-effective.

The new LMS Data EcoNetCab range of Enterprise-level data cabinets, all of which are professionally assembled in the UK come with the quality and features you’ve come to expect from LMS Data. Available for a choice of professional installation scenarios, built from the ground up with quality alloys, robust powder coating, and of course features to make pre and post-installation easy, including adjustable front and rear ETSI 19-inch mount posts, gland plates, removable side panels and left/right hinged front safety glass door and solid rear door.

Offering excellent quality coupled with value for money, this new 47U 600mm deep Data Cabinet Server Enclosure is ideal for use as an IT Data system, Network Storage NAS cabinet, or telecom installation, no matter how big or small. Designed to exacting standards, the Data Cabinet Rack Mount Rack range offers total networking and high-valued IT device containment, coupled with ease of installation and accessibility for post maintenance. Used throughout both Public and Private Sector installations across the UK and Europe, these Data Cabinets feature genuine useful features including superior hot air venting (both passive and active), heavy-duty vertical uprights both front and back with can be fully adjusted, and multiple cable entry points for correct cable placement.

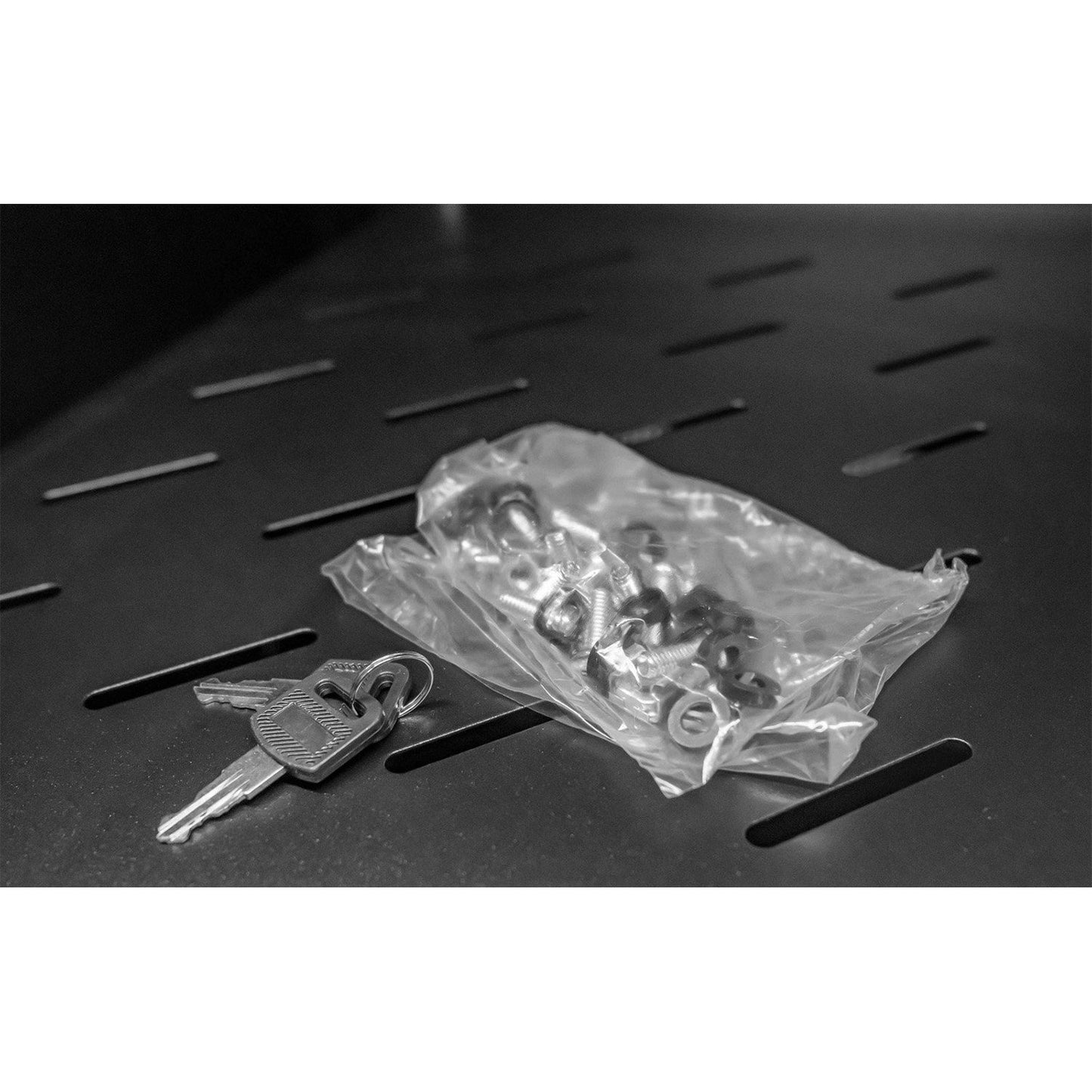

Supplied as standard with a host of fitted accessories including fitted fan tray, front cable management, vented shelf, castors, and jacking feet together with M6 captive nut and bolt kit. Saving you both time and money for all your professional data installations.

Features

• Ideal for Rackmountable Switches, NAS, Rackmount UPS, and PABX systems
• 47U H2320mm x W600mm x D600mm is ideal for most IT/telecom/CCTV systems
• Universal 19" design supports all Rackmount active and passive products
• Superior ventilation with the inclusion of a roof-mounted Fan Tray cluster and venting slots throughout
• Quality construction means your hardware stays protected for longer
• Useful design features including front U numbering, multiple cable entry points, and left/right door placement
• Removable side panels with special, together with high-quality locks on the front Glass door (options available)
• Bundled accessories include FREE: 'Roof-Mounted' Fan Tray, Castors, Jacking Feet, Cage Nuts and Bolts, Vented Shelf

Technical Specifications

• 47U for standard 19" rack-mounted appliances
• Standard, UK type Free Standing Enclosure
• RAL9044 Black powder-coated
• Dimensions: 600 (width) x600(depth) x2320mm (height inc. castors)

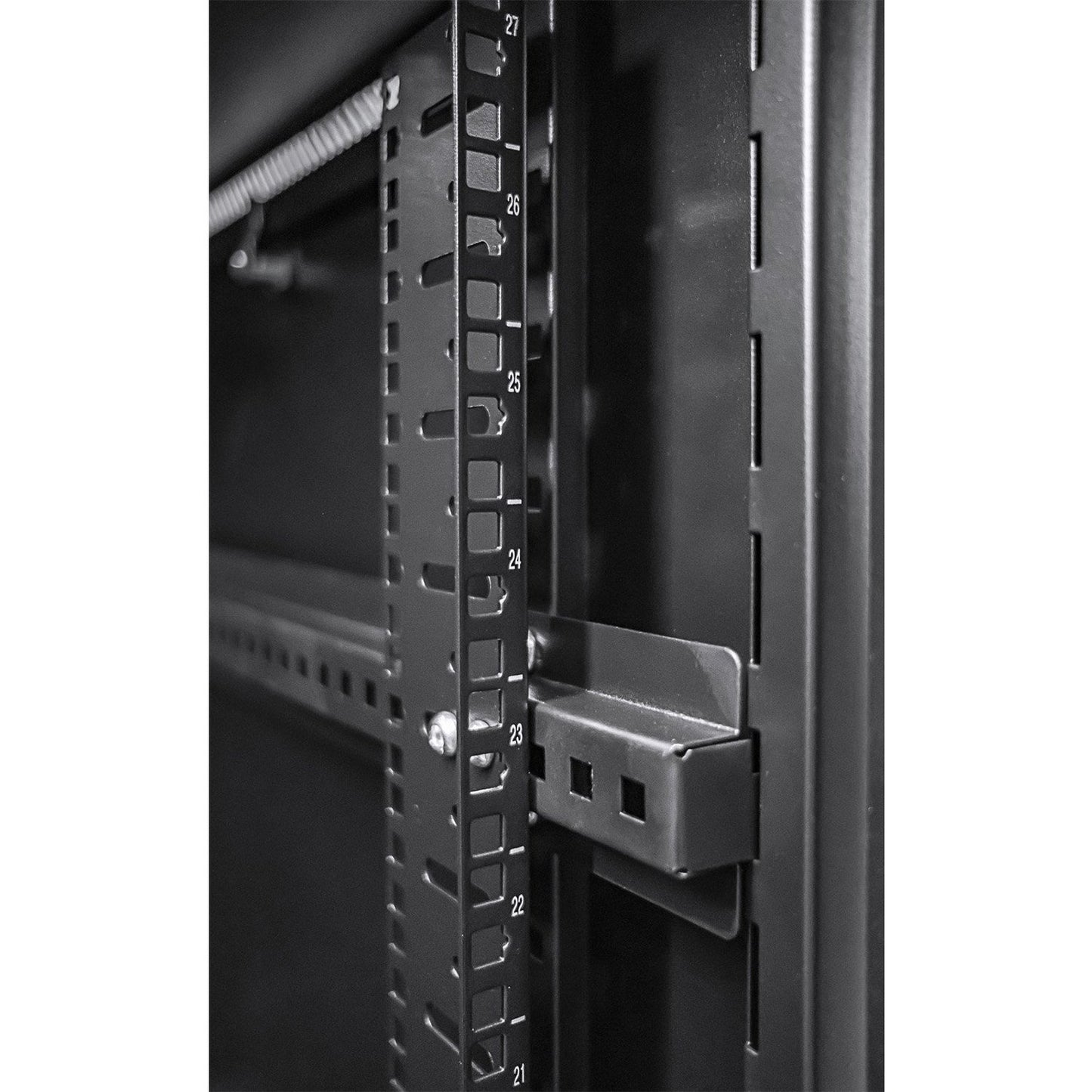

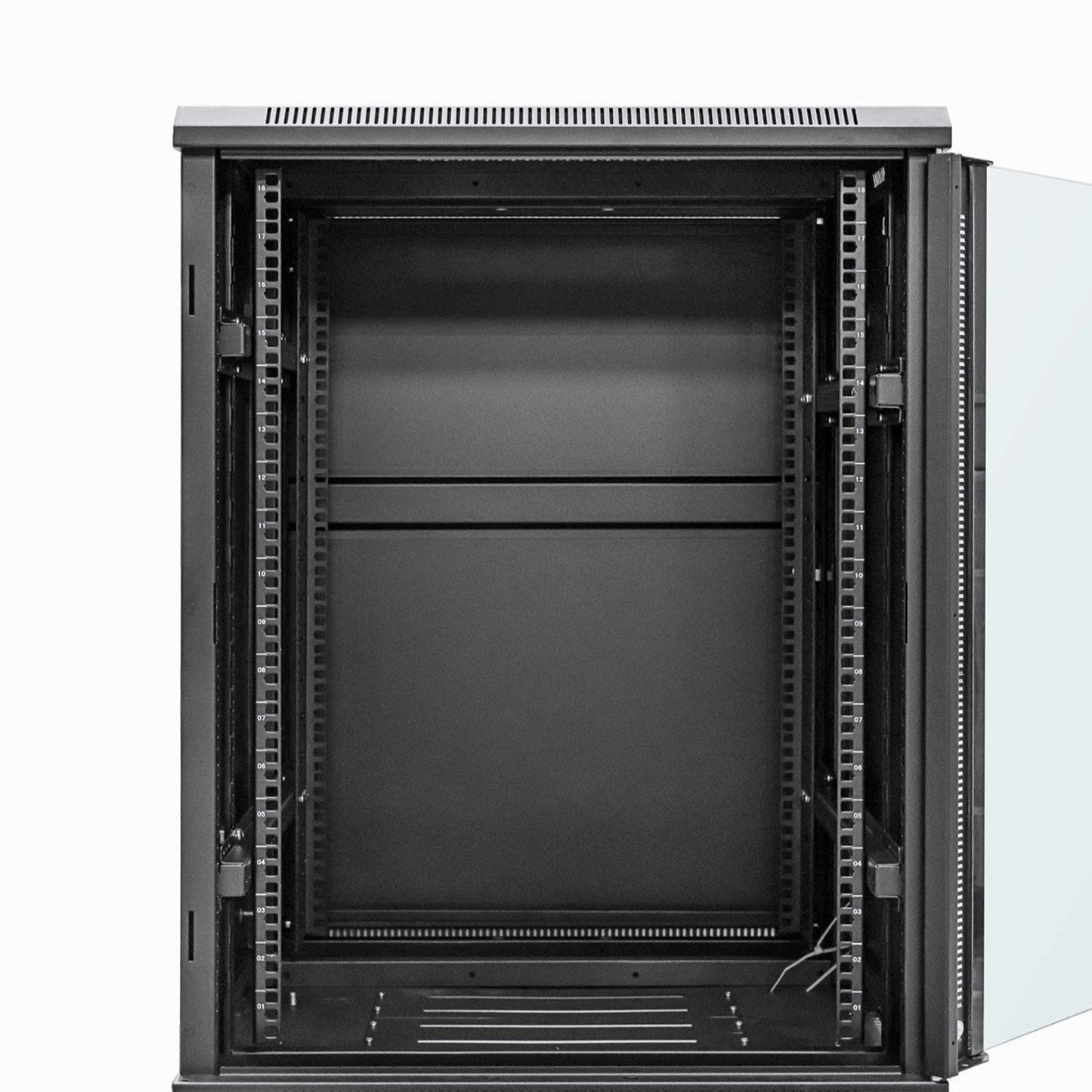

• ETSI standard 19" Front and Rear vertical profiles
• 2.00mm thick vertical profiles and fully adjustable
• Up to 800Kg static load capacity (ideal for Telecoms, Data applications)
• Integral Electrical Earth connector for improved electrical compliance

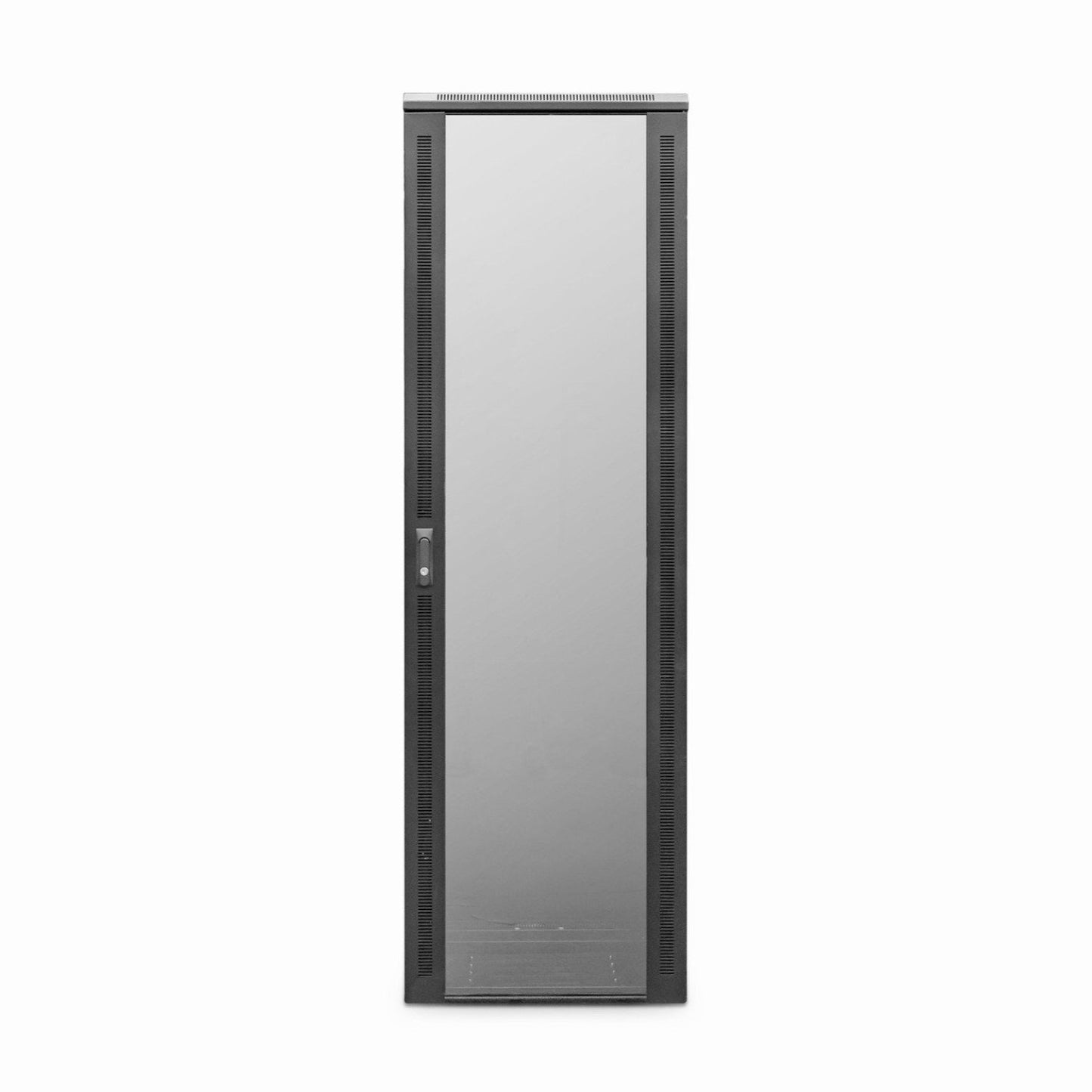

• Lockable front Glass Door (Tempered safety glass)
• Lockable rear door
• Front and Rear doors are fully reversible
• Removable side panels to allow post-installation maintenance
• Front, rear, and top vented slots for improved airflow
• Multiple cable entry points to aid easy cabling routing

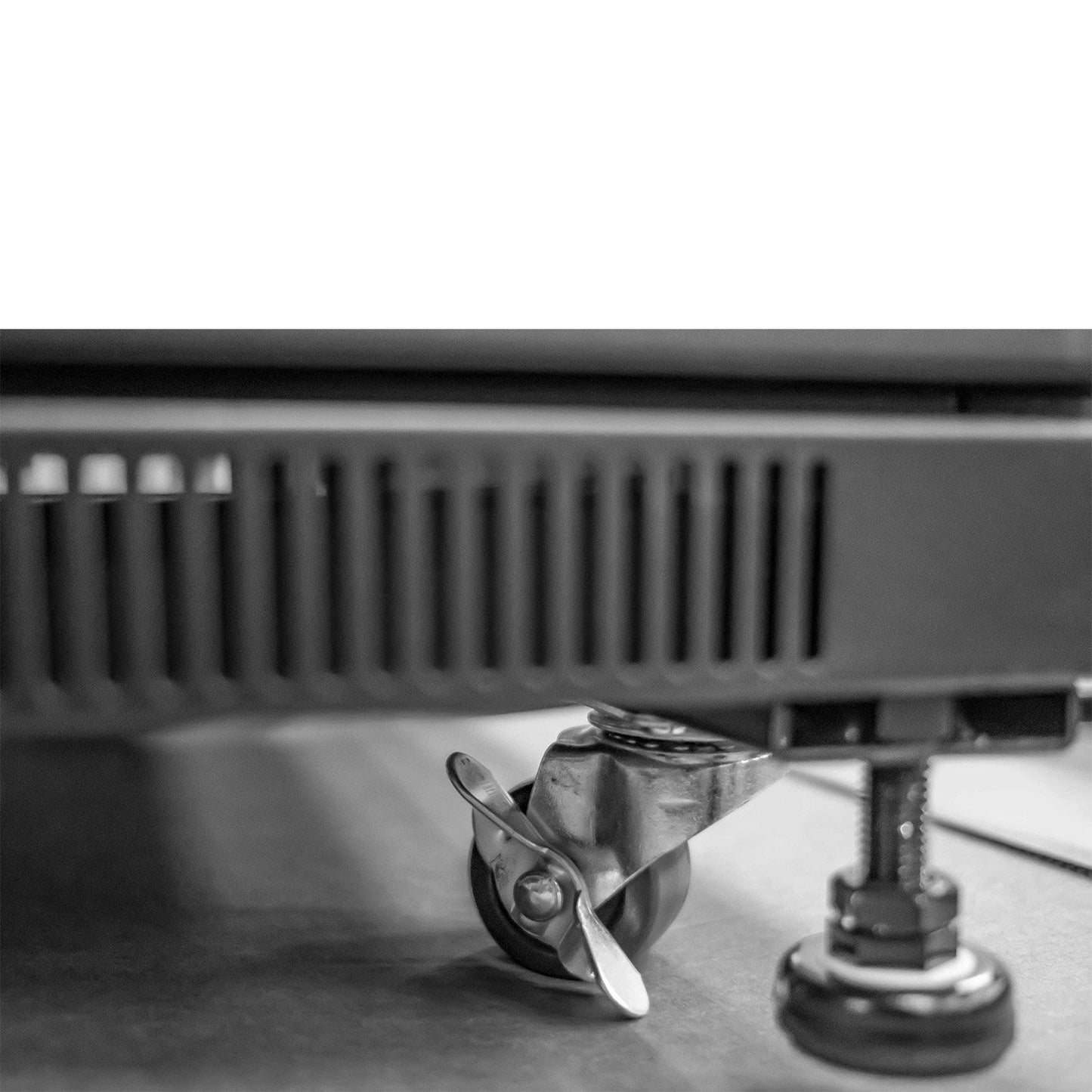

• Attached are shipping/standard-duty castors with adjustable jacking feet
• Supplied and fitted 'roof mount' Fan Tray for enhanced thermal cooling

Package Includes

• 1      x       47U 19" Cabinet 600X600 Floor Standing Data Rack
