21depot

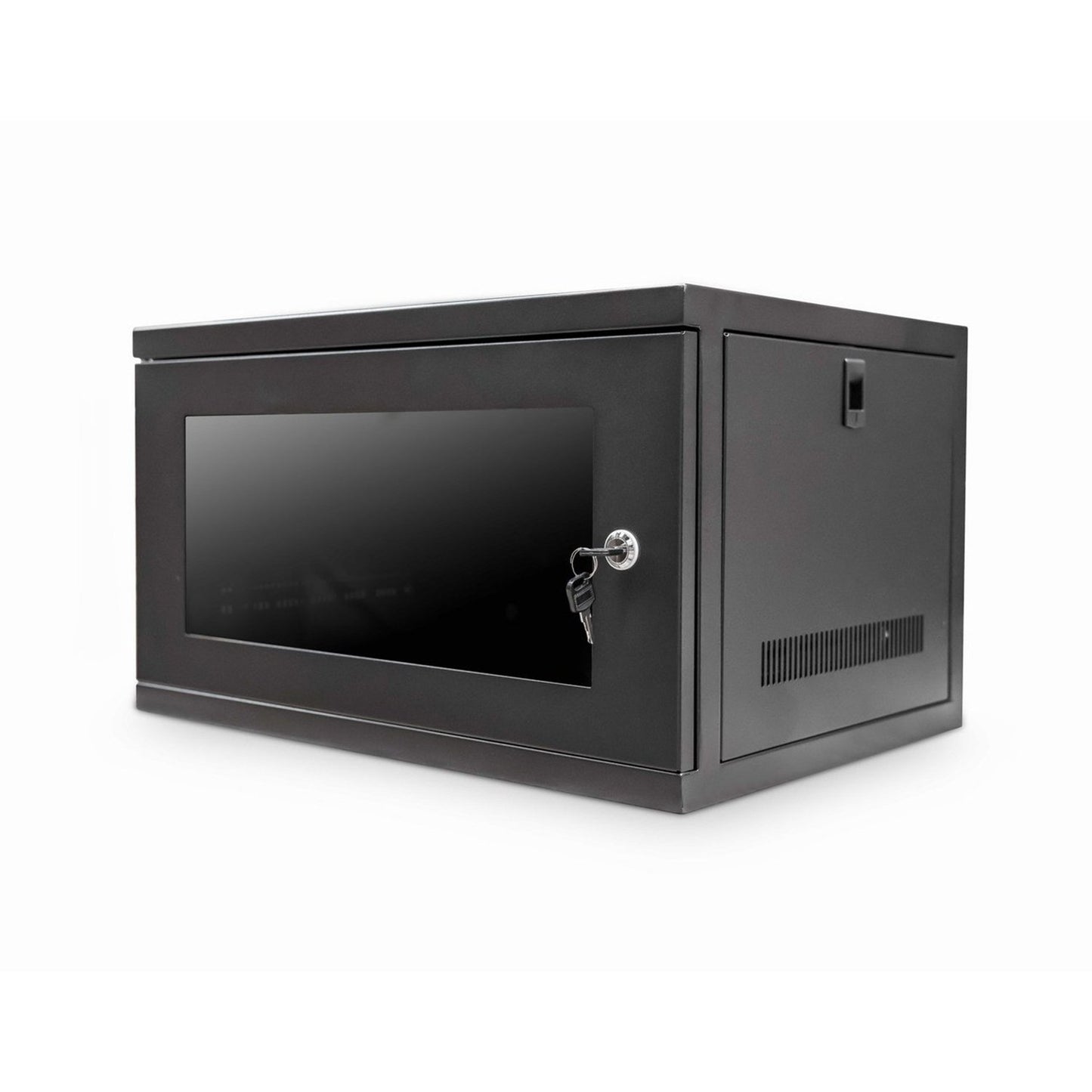

6U 400mm Deep 19" Data Wall-Mounted Cabinet-Black/CAB-W6U-EL400

Regular price £49.67 GBP
Regular price Sale price £49.67 GBP
Sale Sold out
Tax included.

Quality and security for all your networking, AV, and security applications.

Exceptional build quality and a host of features. Everything you need in a compact, 19-inch wall enclosure.

The new CAB-W6U-EL400 is a feature-rich, 6U wall-mount cabinet that allows all
networking, PBX, A/V, and home automation to be installed within its universal standard 19-inch vertical support rails.

With an extra 400mm deep form factor, the majority of entries to medium-range networking hardware can be installed with ease, as well, of course, passive networking hardware including patch panels, cable management, PDUs, and even rack-mount fan trays.

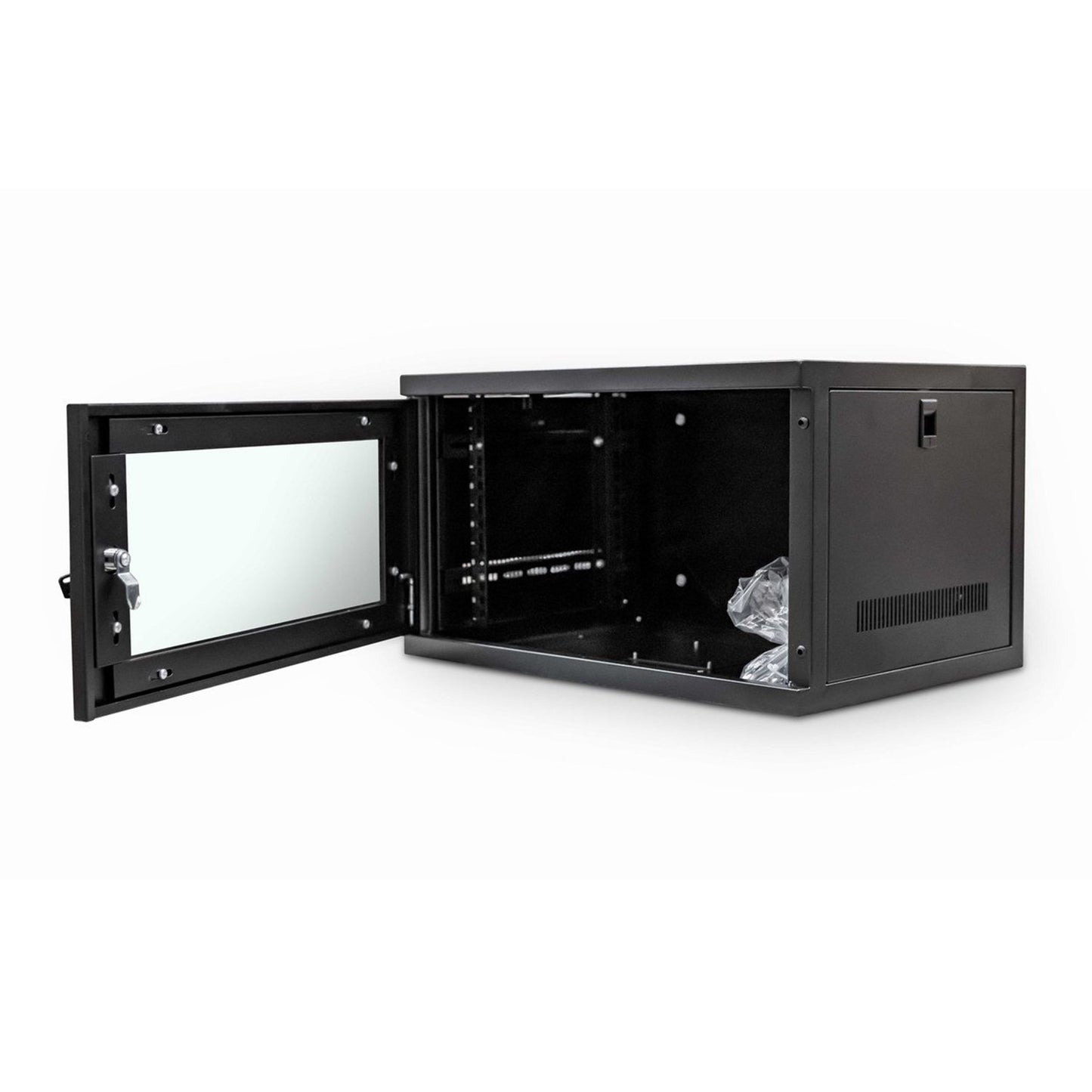

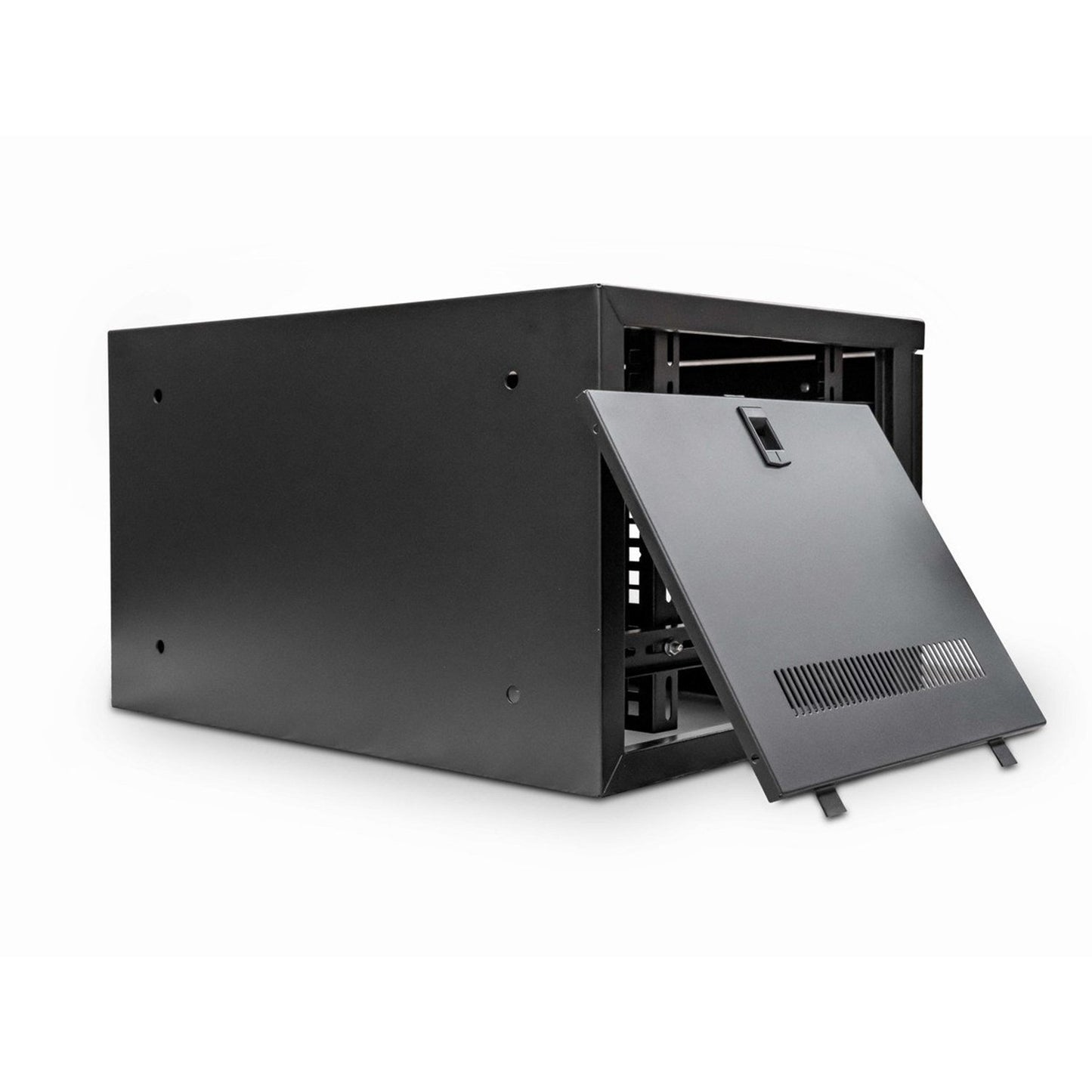

Fully built straight from the box, the CAB-W6U-EL400 6U Network Cabinet features a front reversible lockable door and removable side panels for ease of equipment access and rear vertical profiles for secure equipment fixing.

Equipped with ventilation slots for increased equipment airflow and of course the easy, single-person installation makes the CAB-W6U-EL400 the ideal choice for all your SME installations.



Features

  • Wall mount 6U (H320mm x W550mm x D400mm)
  • If required, can be placed on a desk or on the floor
  • Standard 19" vertical profiles with a choice of depths
  • Ideal for low-density Network Switches, Patch Panels, CCTV, and Telco systems
  • Passive ventilation slots with the option of Rackmount Fan Trays
  • Easy to install, can be affixed to most Wall types
  • Useful design features including front U numbering, top and bottom cable entry
  • Lockable glass door, removable sides, and wall mountable.
  • Assembled in the UK



Technical Specifications

  • 6U high 550W 400D
  • Weights: 10.1Kg
  • Dimensions: 550(width) x400(depth) x320mm (height)
  • ETSI 19” front/rear profiles
  • Lockable glass door, reversible if required
  • Wall mountable with removable side panels
  • Powder-coated BLACK and robust grey finish
  • Easy-to-install wall deployment - pre-built
  • Supplied with a bag of M6 fixings
  • RAL9044 Black powder-coated
  • Multiple Cable Entry Points
  • Front and Rear Profiles
  • Excellent thermal cooling
  • Ideal for Branch Offices, Retail, and Education



Package Includes

  • 1     x     6U 400mm Deep19" Data Wall-Mounted Cabinet-Black
