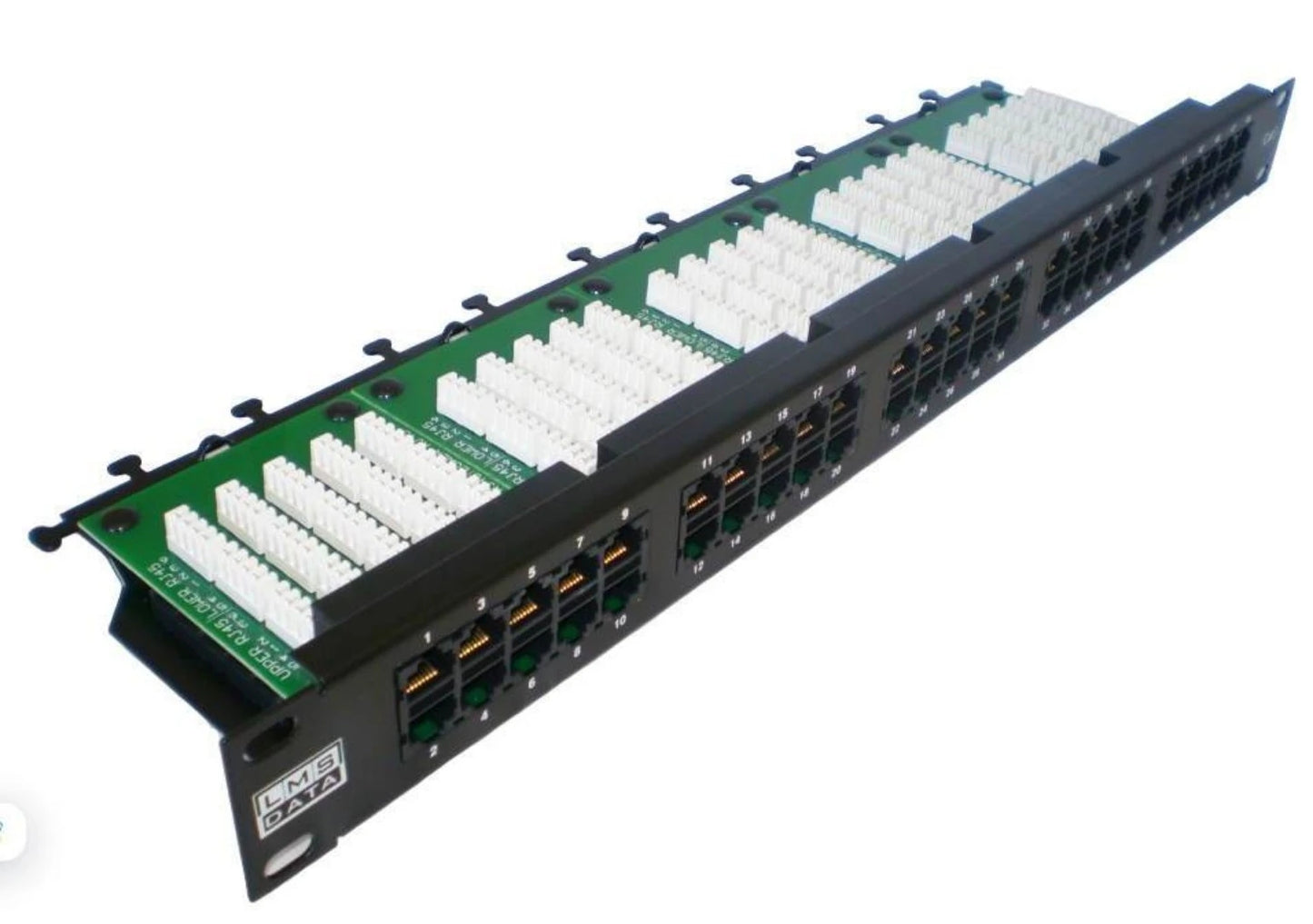

50 Port 2U Rackmount CAT3/TELCO 6-Pin Patch Panel/PPAN-50-T

Regular price £21.66 GBP
Regular price Sale price £21.66 GBP
Sale Sold out
Tax included.

The Cost-Effective Telco Patching Panel

Offering quality construction and performance in the world of Telecommunications Patching for your Telco and low bandwidth networking applications.

The PPAN series is a fully featured Telco Patch Panel with FCC-approved outlets with full technical adherence to ISO/IEC-11801 specifications. With integral gold-plated connections and over a 750 insertion life on the Ports, the PPAN series is your ideal choice

What’s more, the Krone® type IDC connectors on the horizontally mounted IDC have an excellent re-insertion life of over 200 cycles and can accommodate 22-26 AWG cables with ease. Fully connector numeric IDs are screen printed also for quick punch down.

High-density 50-Way 1U high design to maximize your Enclosure space.

The LMS Data PPAN-50-T is a 50-Port enhanced CAT3 and Telecommunications Patch Panel for working in low bandwidth applications of legacy PABX Telco applications.

Fully certified to CAT3/Telco standards allowing typical voice call cables to be terminated and thus patched via the 6-PIN front connection ports.

Long-life, nickel-plated female ports are coupled with a vertically designed Krone(tm) IDC terminal IDC together with a rear cable management bar and tabs.

Features

  • Certified CAT3/TELCO 50 Way Patch Panel
  • Standard 6-Pin Ports with Krone(tm) IDC Punchdown
  • 2u High means it fits in the smallest of data cabinets
  • Office and Educational Sector PBX Telecom Installations
  • Ideal for PBX Telco Switches, Alarm Systems, and Legacy Systems
  • Create fault-tolerant Voice Ports by simply patching ports

Specifications

  • 50-Way 1U High, 19” Wide Form Factor
  • Ideal for Telco and CAT3 type low bandwidth applications
  • Certified to ISO/IEC-11801 specifications, 6-pin
  • Krone® style rear horizontal IDC with 200+ insertion cycle
  • Gold-plated sockets for improved data flow and reduced resistance
  • 22-26AWG Data Cable compatible
  • Insulation resistance approx. 1000Mohms
  • Contact resistance approx. 7Mohms
  • Integral rear cable management anchor points
  • Quality metal casing with front Port Numbering



Package Includes

  • 1     x      50 Port 2U Rackmount CAT3/TELCO 6-Pin Patch Panel
